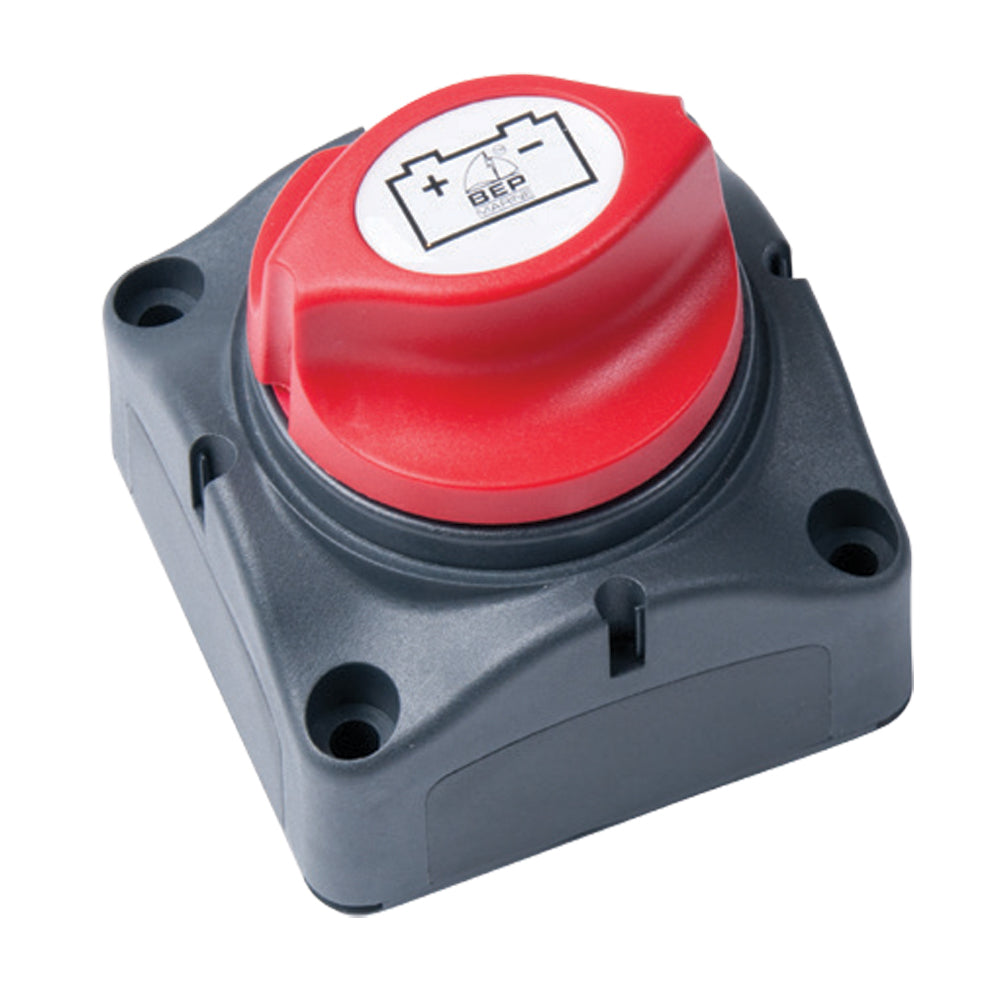

BEP Contour Battery Disconnect Switch - 275A Continuous

The Mini Contour Battery Disconnect Switch - 275A Continuous is an essential component for marine and boating applications, providing reliable and efficient battery management. Designed with versatility in mind, this switch can operate as a standalone unit or be seamlessly integrated with other switches using the Contour Locking System, ensuring optimal performance and ease of use on any vessel.

Key Features

• Versatile mounting options: surface or recess mounted with a simple 2.1" (52 mm) cut-out hole
• Contour Locking System allows for standalone use or secure locking with additional switches
• Removable control knob: easily remove by rotating counterclockwise to a 45-degree position
• Interchangeable labeling system for customizable application (Item # 713 or 715)
• Three removable side plates provide access for up to 1/0 cables
• Rear cover designed to insulate rear terminals, preventing short circuits and ensuring safety
• Ignition-protected design for enhanced safety in marine environments
• Constructed with durable tin-plated copper studs and nuts for long-lasting performance

Technical Specifications

Current Rating	275A Continuous
Mounting	Surface or Recess Mounted (requires 2.1" or 52 mm hole)
Control Knob	Removable, with interchangeable labels (Item # 713 or 715)
Cable Access	Up to 1/0 cables via three removable side plates
Compliance	Meets ABYC requirements and UL 1107 standards
Testing	Tested for continuous (1 hour), intermittent (5 minutes), and cranking (10 seconds) applications by an independent 3rd party laboratory

Safety and Compliance

The Mini Contour Battery Disconnect Switch is engineered to meet stringent safety standards, ensuring reliable performance in demanding marine environments. The rear cover provides insulation for the rear terminals, preventing short circuits and enhancing overall safety. Additionally, the switch complies with ABYC requirements and undergoes rigorous testing per UL 1107 standards:

• Continuous Rating: Tested for 1 hour
• Intermittent Rating: Tested for 5 minutes
• Cranking Rating: Engine starting tested for 10 seconds
• All continuous and intermittent ratings are tested at 110% of specified ratings to ensure durability and reliability

Installation and Customization

Installing the Mini Contour Battery Disconnect Switch is straightforward, thanks to its versatile mounting options. Whether you prefer a surface mount or a recessed installation, creating a 2.1" (52 mm) hole in your console accommodates the switch perfectly. The removable control knob allows for easy customization with interchangeable labels, making it adaptable to a variety of marine applications.

Durable Construction

Built to withstand the harsh conditions of marine environments, the switch features tin-plated copper studs and nuts, providing excellent conductivity and resistance to corrosion. The ignition-protected design ensures added safety, preventing electrical hazards during operation.
