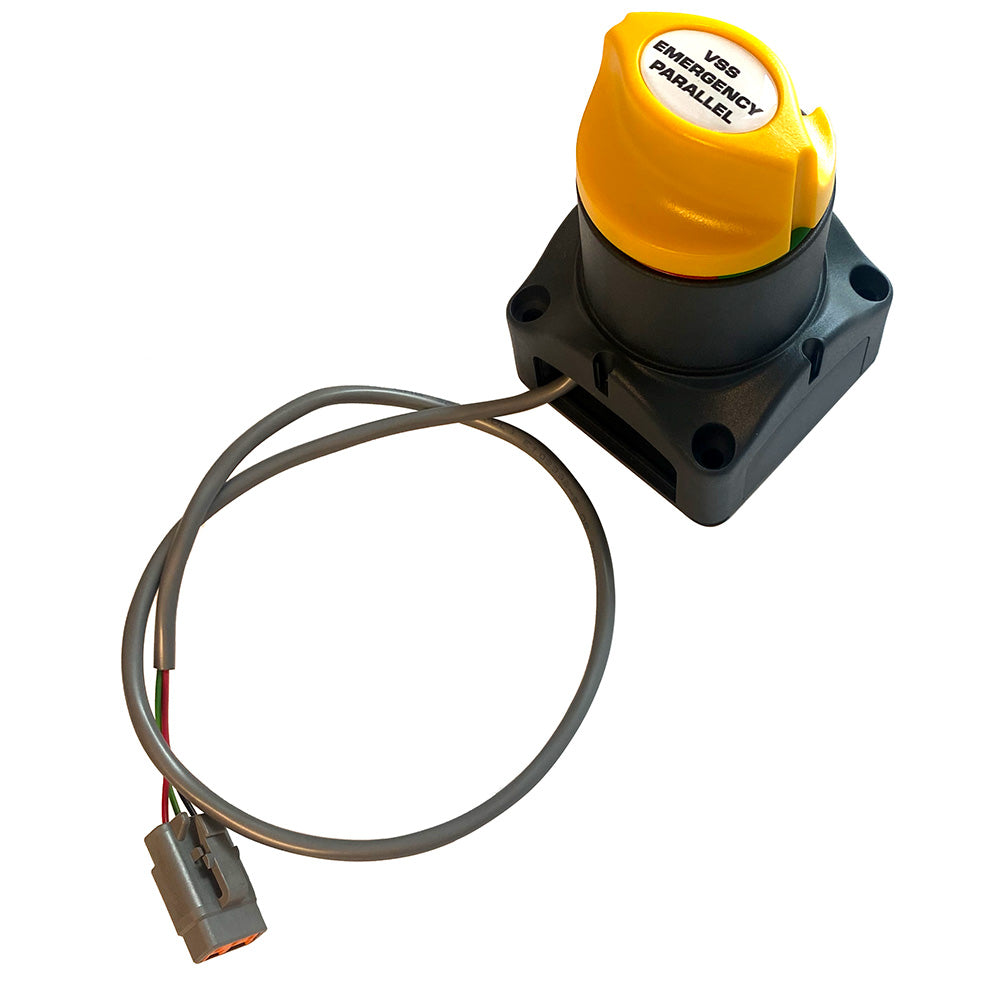

BEP 275A Cont Motorized Dual Operation VSS (Voltage Sensitive Switch) - Deutsch Connector

The 275A CONT Motorized Dual Operation Voltage Sensitive Switch (VSS) with Deutsch Connector is an essential component for marine and boating enthusiasts seeking reliable and efficient dual battery management. Designed to ensure optimal power distribution and battery protection, this high-performance VSS seamlessly integrates into your vessel’s electrical system, providing both flexibility and peace of mind during your maritime adventures.

Key Features

• Robust Deutsch Connector: Ensures secure and durable connections, ideal for the harsh marine environment.
• Dual Battery Voltage Sensing: Monitors each battery bank independently for precise voltage management.
• Manual Override: Offers enhanced control, allowing you to manually manage battery connections when needed.
• Marine-Grade Construction: Features tinned copper conductors, stainless steel hardware, and high-temperature fiber-reinforced plastic for longevity in demanding conditions.

Advanced Engine Run Sensing

The VSS intelligently manages your batteries based on engine activity and battery voltage levels:

• Activation Threshold: Engages when the voltage of either the start or house battery reaches 13.7 volts.
• Low Voltage Protection:
  • If the combined voltage drops below 13.0 volts and the engine is off, the contacts open after a 5-second delay, preventing battery drain until voltage exceeds 13.7 volts.
  • If the voltage falls below 12.2 volts while the engine is running, the contacts open after a 5-minute delay, maintaining power distribution and protecting your batteries.
• Consistent Power Distribution: Maintains connection when voltage is between 12.2 volts and 13.0 volts with the engine running, ensuring uninterrupted power to critical systems.

Remote Emergency Parallel Function

Enhance your vessel’s power management with the remote emergency parallel feature:

• Momentary Activation: The 701-MDVS-D model can be triggered via a dashboard button, allowing batteries to operate in parallel for up to 10 minutes.
• Automatic Disengagement: After the 10-minute period, the VSS will maintain the connection if voltage levels are sufficient or automatically disengage to protect the batteries.
• Simplified Electrical Setup: Combines dual battery charging and emergency parallel operation in a single unit, ensuring reliable performance during critical situations.

Technical Specifications

Specification	Details
Continuous Current Rating	275 Amps DC
Intermittent Current Rating	455 Amps DC
Cranking Current Rating	1250 Amps DC
Operating Voltage Range	9.5 - 32 Volts
Operation Mode	On / Off
Mounting Options	Recessed or surface mount
Ignition Protection	Included for enhanced safety
Stud Size	2 x 10mm (3/8-inch)
Power Consumption	12mA (switch off), 15mA (switch on), 120mA during operation for 3 seconds at nominal 12V

Additional Specifications

• Continuous Amperage: 275 Amps DC
• Number of Positions: 2
• Dimensions: 3" H x 3" W x 4" L
• Weight: 0.65 lbs
• UPC: 870216038360

Why Choose the 275A CONT Motorized Dual Operation VSS?

When it comes to marine power management, reliability and performance are non-negotiable. The 275A CONT VSS offers unparalleled control over your dual battery systems, ensuring that your navigation, lighting, and other essential systems remain powered without compromising your battery health. Its durable construction and intelligent sensing capabilities make it the perfect choice for boats and marine vessels that demand the best in electrical componentry.

Installation and Compatibility

Designed for ease of installation, the VSS can be mounted either recessed or on the surface, providing flexibility to fit your boat’s layout. Its compatibility with a wide range of marine batteries and charging sources makes it a versatile addition to any marine electrical system. Whether you're upgrading your existing setup or installing a new system, the 275A CONT VSS ensures seamless integration and optimal performance.

Customer Support and Warranty

We stand behind the quality and performance of our products. The 275A CONT VSS comes with comprehensive customer support and a warranty to give you peace of mind. Our team is ready to assist you with any questions or installation guidance you may need, ensuring that your dual battery system operates smoothly and efficiently.

Order Your 275A CONT Motorized Dual Operation VSS Today

Enhance your marine electrical system with the 275A CONT Motorized Dual Operation Voltage Sensitive Switch. Experience the difference in power management and battery protection that only a top-tier VSS can provide. Shop now and ensure your vessel is equipped with the best in dual battery technology.
