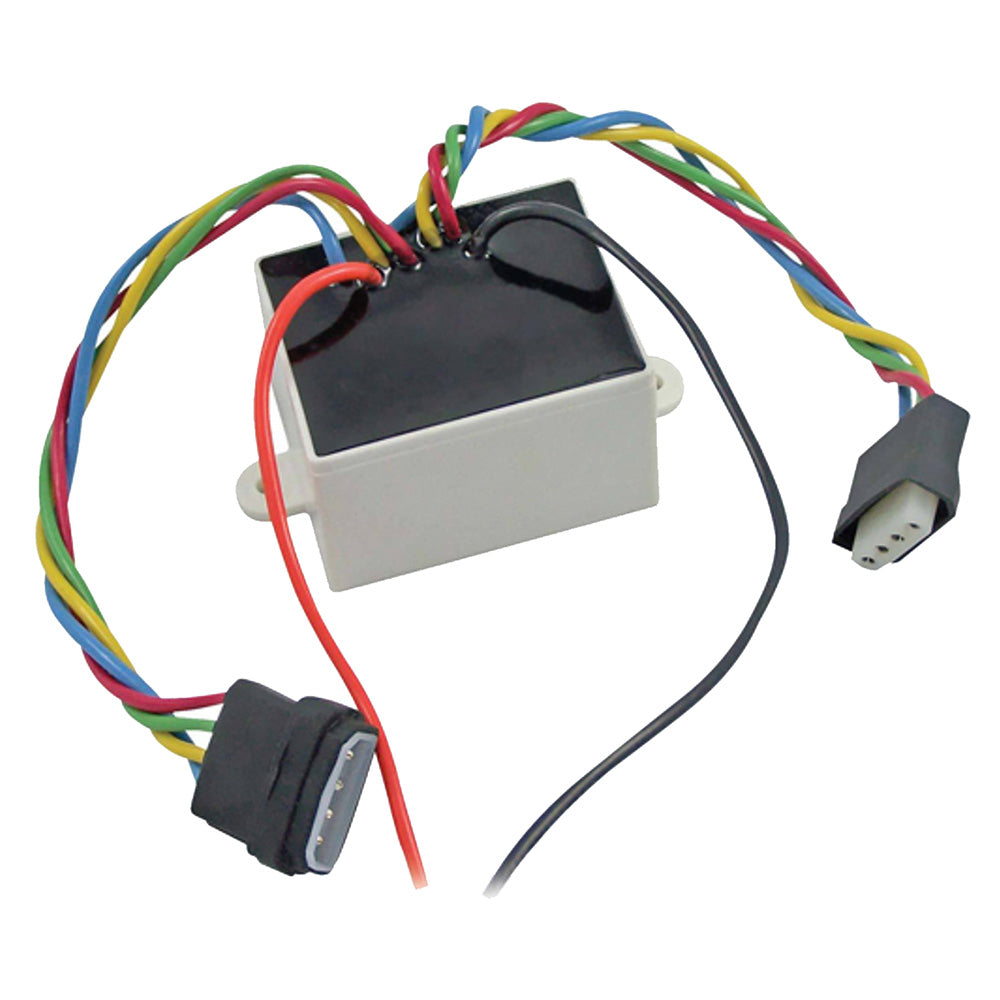

Bennett Marine Relay Module - 12V

Enhance the performance and reliability of your marine trim tab system with our 12V Relay Module. Designed specifically for boating applications, this module minimizes voltage drop in setups with extended wiring, ensuring smooth and consistent operation of your trim tabs.

Advanced Voltage Regulation

The 12V Relay Module effectively reduces voltage drop in trim tab systems, especially beneficial for longer wire runs commonly found in marine environments. This ensures that your trim tabs receive stable power, enhancing their responsiveness and reliability.

Interrupter Relay Functionality

Compatible with older trim tab controls such as the RT1000 and RS1000, the Relay Module serves as an interrupter relay. This crucial function prevents fuses from blowing by blocking simultaneous activation of Bow Down and Bow Up commands, safeguarding your electrical system from potential damage.

Key Features

• Reduces voltage drop in trim tab systems with longer wire runs
• Acts as an interrupter relay for RT1000 and RS1000 trim tab controls
• Prevents fuse blowouts by inhibiting simultaneous Bow Down and Bow Up operations
• Durable construction tailored for marine environments

Technical Specifications

Voltage	12V DC
Compatibility	RT1000 and RS1000 trim tab controls
Application	Marine trim tab systems

Installation Instructions

Installing the 12V Relay Module is straightforward. Follow these steps to integrate it into your trim tab system:

1. Disconnect the boat’s battery to ensure safety.
2. Locate your existing trim tab control unit (RT1000 or RS1000).
3. Connect the Relay Module to the trim tab control following the wiring diagram provided in the manual.
4. Ensure all connections are secure and protected from moisture.
5. Reconnect the battery and test the trim tab operations to confirm proper functionality.

Why Choose Our Relay Module?

Our 12V Relay Module is engineered for durability and performance in harsh marine conditions. By preventing voltage drops and protecting your electrical system, it extends the life of your trim tab controls and ensures a smoother boating experience.
