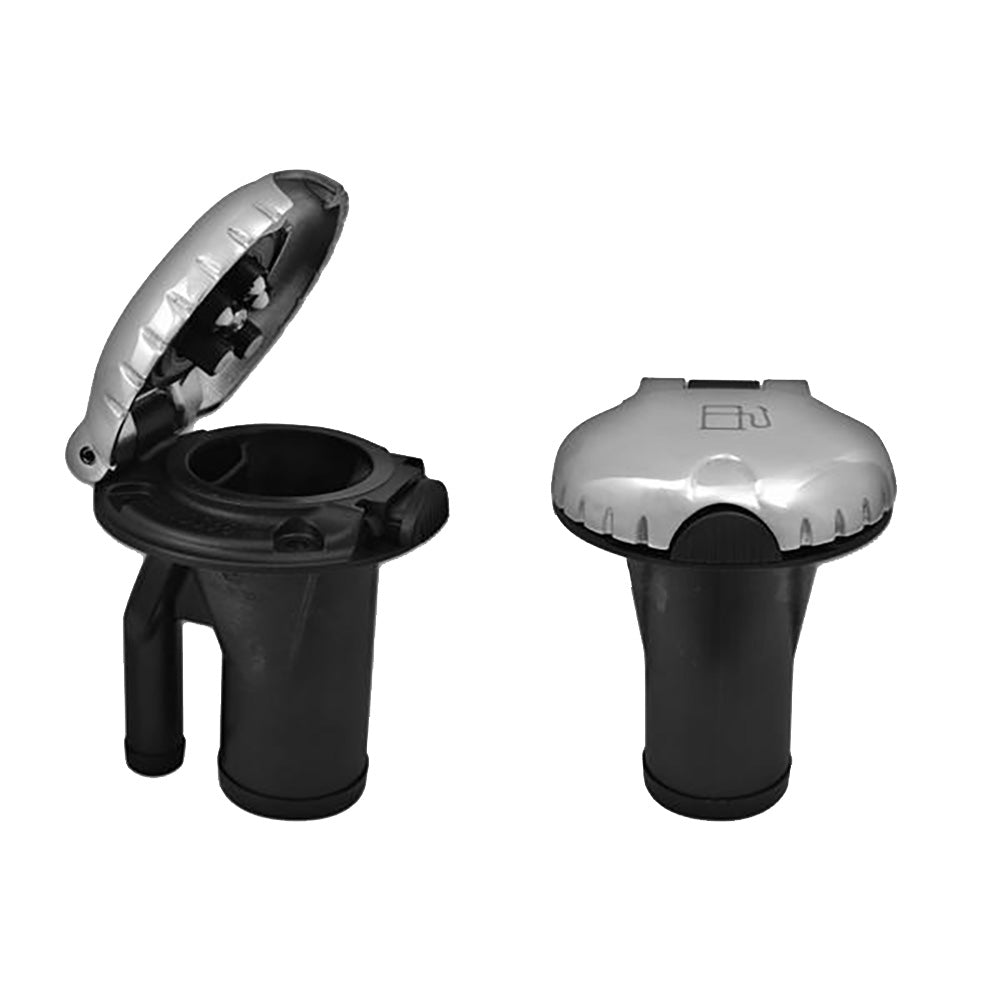

Attwood Deck Fill f/Pressure Relief Systems - Straight Body Scalloped Stainless Steel Cap
Attwood Deck Fill f/Pressure Relief Systems - Straight Body Scalloped Stainless Steel Cap is backordered and will ship as soon as it is back in stock.
Product Description
Product Description
Ensure the safety and efficiency of your marine fuel system with our premium Deck Fill for Pressure Relief Systems. Designed specifically for the demanding conditions of marine and boating environments, this stainless steel cap provides reliable pressure management, preventing overpressure and ensuring optimal fuel tank performance.
Product Overview
The Deck Fill for Pressure Relief Systems integrates advanced automatic diurnal emission control and overpressure relief safety valves directly into the cap of the fuel fill. Engineered to release pressure above 1 psi, the overpressure relief safety valves safeguard your fuel system from excessive pressure build-up. High-flow vacuum valves facilitate the entry of fresh air into the fuel tank, replacing the fuel consumed by your marine engine. Additionally, the system is meticulously designed to prevent water ingress, ensuring the purity and efficiency of your fuel supply.
Key Features
- Compatibility: Fits 1-1/2 inch fill hose and 5/8 inch vent hose, making it suitable for a wide range of marine fuel systems.
- High-Flow Vacuum Valves: Triple vacuum valves ensure maximum make-up airflow, ideal for high horsepower marine applications.
- Automatic Nozzle Shutoff: Features a shutoff range of 4-18 gallons per minute (gpm) for efficient and safe refueling.
- Durable Construction: Finished with stainless steel for enhanced durability and corrosion resistance in marine environments.
- Essential Component: Integral part of VaporTec and SecureStop systems, providing comprehensive fuel management solutions.
- Water Prevention: Designed and tested to prevent water from entering the fuel system, safeguarding engine performance.
- Certification: EPA and CARB Certified, ensuring compliance with environmental and safety standards.
- Audiable Click Cap: Hinged cap with an audible click meets EPA requirements for secure fuel cap closure.
- Standards Compliance: Meets CARB 13 CCR 2235 and ISO 13331 nozzle mating and retention standards for universal compatibility.
Technical Specifications
Feature | Specification |
---|---|
Fill Hose Compatibility | 1-1/2 inch |
Vent Hose Compatibility | 5/8 inch |
Shutoff Range | 4-18 gpm |
Pressure Release | Above 1 psi |
Material | Stainless Steel |
Certifications | EPA / CARB Certified |
Standards Met | CARB 13 CCR 2235, ISO 13331 |
Benefits for Marine Applications
Our Deck Fill cap is specifically engineered to meet the unique demands of marine and boating fuel systems. By preventing overpressure and ensuring consistent fuel levels, it enhances engine reliability and performance. The stainless steel construction resists corrosion from saltwater exposure, extending the lifespan of your fuel system components. Additionally, compatibility with ethanol-blended fuels makes it a versatile choice for modern marine engines.
Additional Information
Fuel Compatibility: Compatible with ethanol-blended fuels, ensuring versatility and performance across various fuel types.
Download the Quick Guide (PDF) for detailed installation instructions and maintenance tips.
