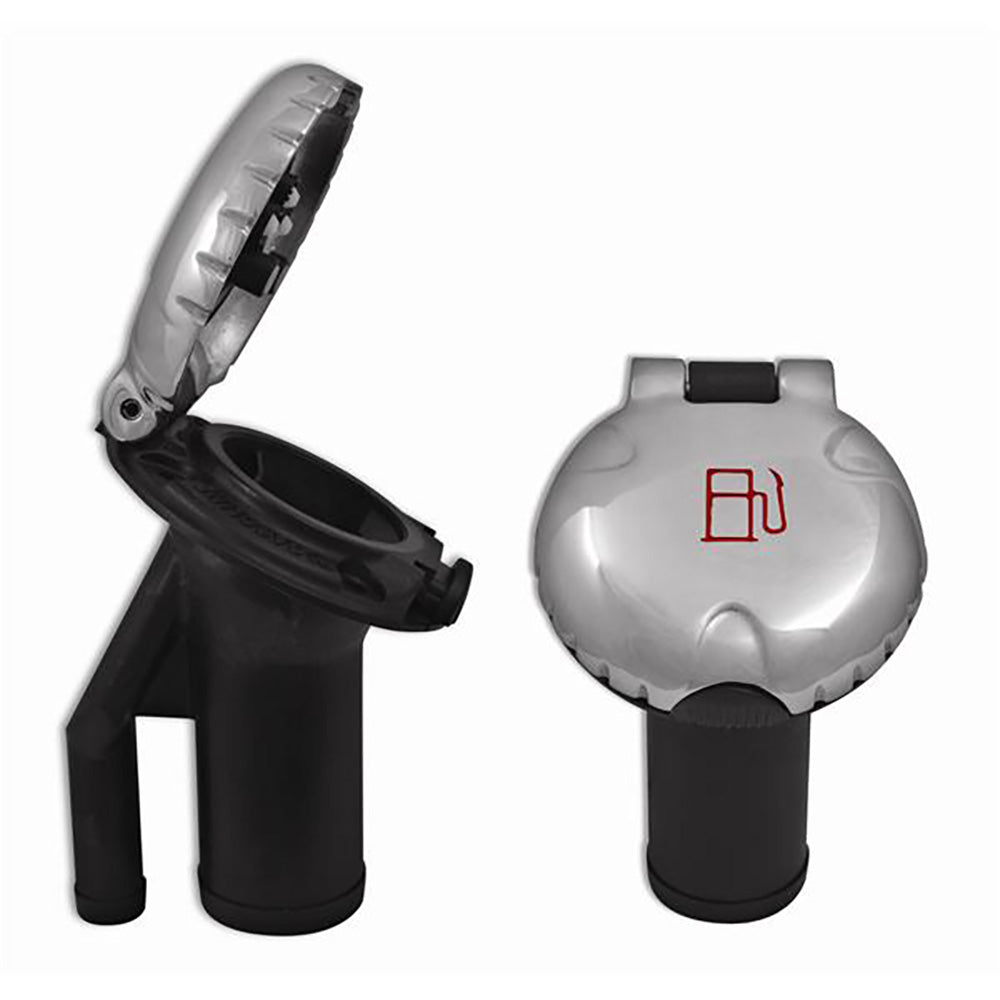

Attwood Deck Fill f/Pressure Relief Systems - Angled Body Scalloped Stainless Steel Cap

Ensure your marine fuel system operates smoothly and safely with our Deck Fill for Pressure Relief Systems. Featuring an angled body and a scalloped stainless steel cap, this essential component is designed specifically for the demanding environments of boating and marine applications.

Product Overview

Our pressure relief system is engineered with automatic diurnal emission control and overpressure relief safety valves integrated into the cap of the fill. These safety valves are calibrated to release pressure above 1 psi, maintaining optimal fuel system performance. The high-flow vacuum valves allow fresh air to enter your fuel tank as fuel is consumed, preventing vacuum formation and ensuring consistent fuel delivery. Additionally, the system is designed to fill the tank to the precise level every time, eliminating issues such as spit-back or well-back during refueling.

Key Features

• Compatible with 1-1/2" fill hoses and 5/8" vent hoses
• Triple high-flow vacuum valves for maximum make-up airflow, suitable for high horsepower applications
• Dual 1 psi diurnal emission control and overpressure relief safety valves built into the cap
• Automatic nozzle shutoff ranging from 4-18 gpm
• Durable stainless steel finish resistant to marine corrosion
• Essential component of VaporTec and SecureStop systems
• Designed and tested to prevent water ingress into the fuel system
• EPA and CARB certified for compliance with environmental regulations
• Hinged audible click cap meets EPA requirements for leak prevention
• Conforms to CARB 13 CCR 2235 and ISO 13331 nozzle mating and retention standards
• Compatible with ethanol-blended fuels

Specifications

Fill Hose Size	1-1/2 inches
Vent Hose Size	5/8 inches
Overpressure Relief	1 psi
Nozzle Shutoff Rate	4-18 gallons per minute
Material	Stainless Steel
Certifications	EPA, CARB

Compatibility

This deck fill is compatible with Jerry Can and marine nozzle refueling systems, making it a versatile choice for various marine fuel setups. It's also an integral part of VaporTec and SecureStop systems, ensuring seamless integration with existing fuel management solutions.

Certifications

• EPA Certified
• CARB Certified
• Meets CARB 13 CCR 2235 and ISO 13331 standards

Additional Resources

For more detailed information, download our Quick Guide (PDF).
