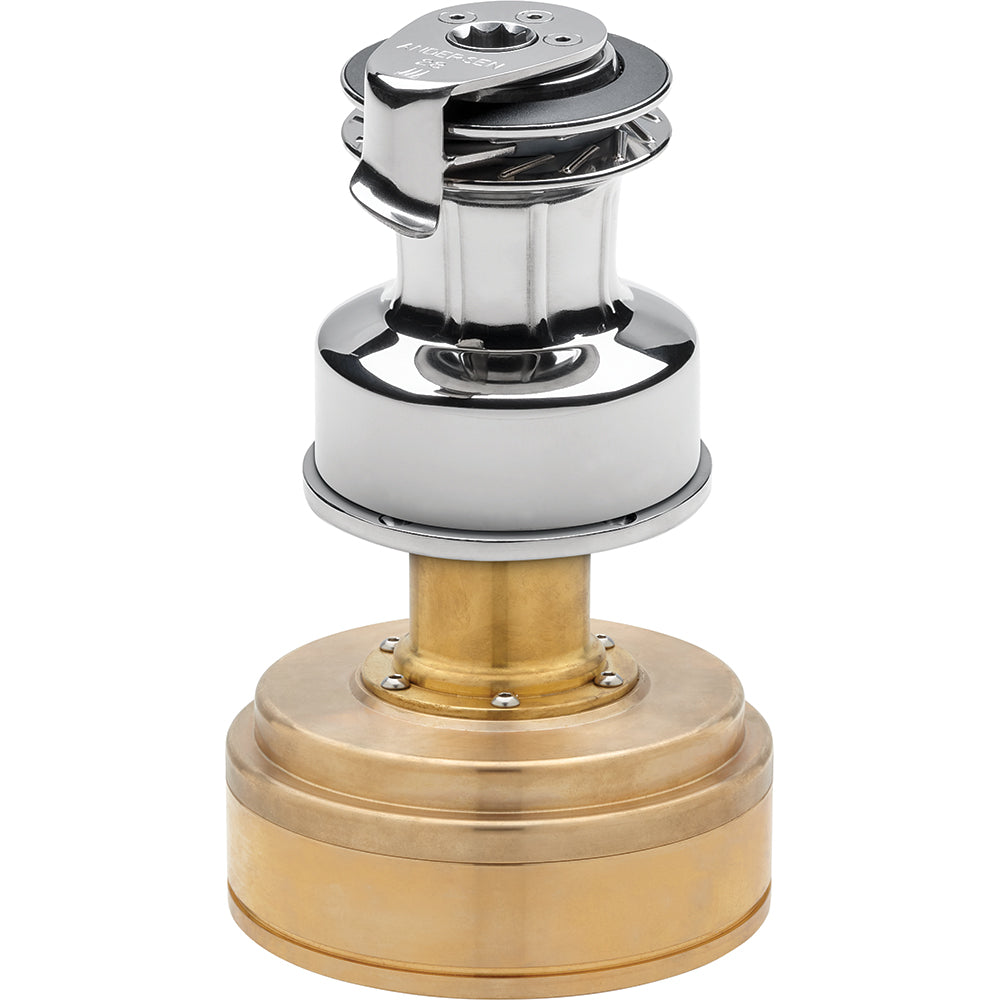

ANDERSEN 40ST Compact Below Deck Electric FS Winch Variable Speed - 12V

The Andersen Compact Motor™ Electric Winch is a robust and efficient solution for managing sails and lines on your vessel. Designed for below deck installation, this full stainless winch offers variable speed control and effortless operation, enhancing your boating experience with reliability and ease.

Effortless Sail Control

The 40ST Compact Below Deck Electric Winch allows you to hoist and trim sails with the simple push of a button. Engineered for ease of use, any crew member can safely manage sails and lines without the need for significant physical strength.

Easy Installation

The Andersen Compact Motor™ Electric Winch is available in two configurations to suit either above deck or below deck motor placement. The motor, gearbox, and controller are seamlessly integrated into one compact unit, eliminating the need for an additional control box. Simplified electrical installation involves connecting the positive and negative power cables to the motor terminals and linking the push button using the included output cable.

High Efficiency and Variable Speed

Equipped with a brushless DC motor paired with a low-profile planetary gearbox, the Compact Motor™ Electric Winch requires less installation space and draws significantly less current compared to traditional motor/gearbox setups. Available in both 12V and 24V models, these winches offer variable speed operation that responds proportionally to the pressure applied to the push button, ensuring smooth and quiet performance.

Advanced Push Button Controls

The winch includes an illuminated "intelligent" push button with an integrated LED that lights up when the winch system is powered. The push button features a hinged safety cover to prevent accidental operation and is water-resistant with an IP67 rating. Additionally, it works with the controller to display status codes through flashing LEDs, aiding in troubleshooting in case of overloads or other system protection events. A connection cable for the push button is provided for easy installation.

Built-In Protection Features

• Integrated Overload Protection: The controller is preset to stop the winch if the maximum pull load is exceeded. Operation can resume within seconds once the load drops below the limit.
• Thermal Overload Protection: The motor is equipped with a thermal cutout that disables the motor in case of overheating and automatically resets once the temperature returns to normal.

Durable Construction

The Compact Motor™ Electric Winch features ANDERSEN Winches™' exclusive stainless steel Power Rib™ drum, ensuring maximum power and extended line life. This model also includes our proprietary self-tailing device, which automatically accommodates a wide range of line sizes, enhancing versatility and ease of use.

Product Specifications

Specification	Details
Drum	2-15/16 in. (75 mm)
Base	6 in. (152 mm)
Height	7-1/16 in. (180 mm)
Line Entry	3-1/8 in. (79 mm)
Line Size	5/16-9/16 in. (8-14 mm)
Weight	40 lbs. (18 kg)
Max Deck Thickness	2-1/8 in. (54 mm)
Motor Depth	7-1/16 in. (180 mm)
Motor	7-11/16 in. (195 mm)

Download the Quick Guide (PDF)
