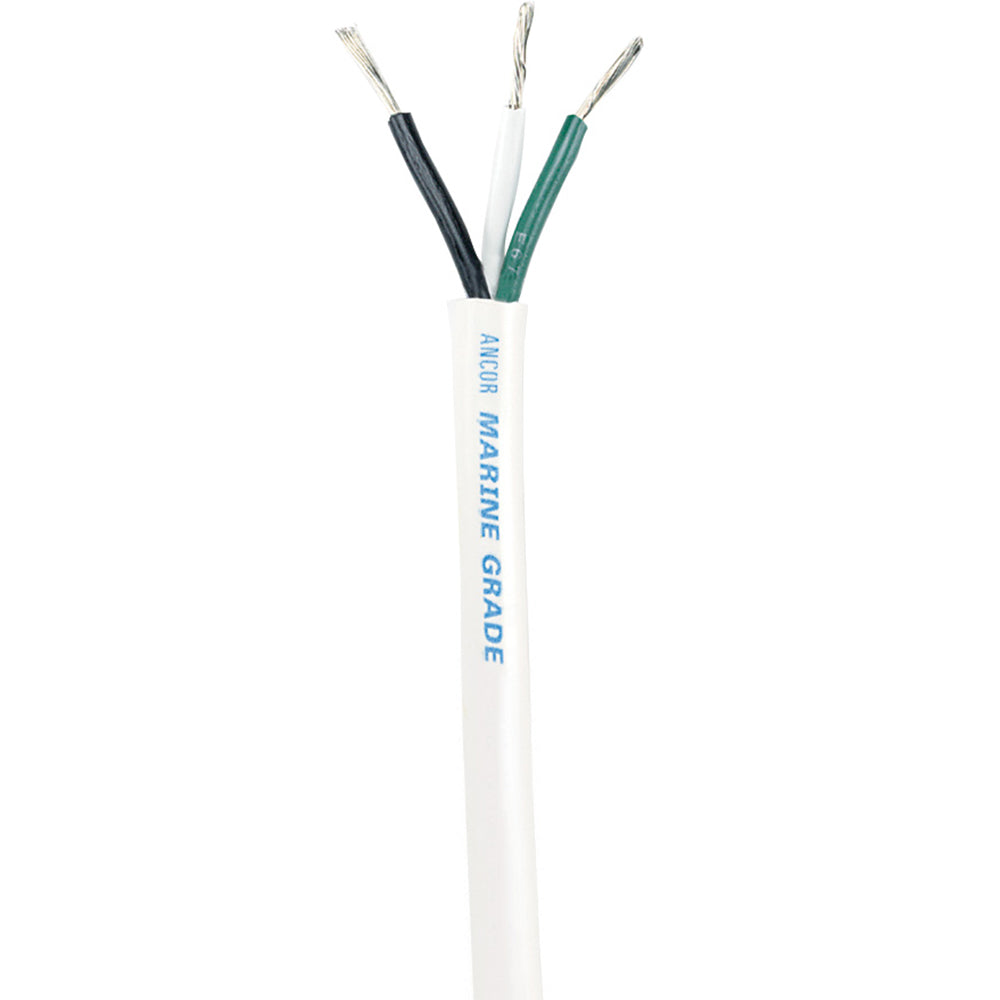

Ancor White Triplex Cable - 14/3 - Sold by the Foot

The White Triplex Cable - 14/3 is designed specifically for marine and boating applications, providing reliable and durable electrical connections. Sold by the foot, this cable ensures flexibility and ease of installation for various marine systems.

Key Features

• Marine Grade Conductors: Equipped with three primary conductors in white, green, and black, color-coded according to ABYC standards, housed within a robust white jacket for easy removal and superior abrasion resistance.
• Superior Certification: Exceeds UL 1426 standards, ensuring top-notch safety and performance for all marine electrical installations.
• High-Quality Stranding: Crafted from ultra-flexible Type 3/Class K tinned copper stranding, offering maximum protection against corrosion and electrolysis while withstanding fatigue from vibration and flexing.
• Premium Vinyl Insulation: Ancor's proprietary insulation remains flexible in extreme cold and resists salt water, battery acid, oil, gasoline, and UV radiation. Rated for 600 volts, it withstands temperatures up to 105°C dry and 75°C wet, providing excellent resistance to heat and abrasion.

Specifications

Specification	Details
Cable Type	Triplex Cable
Configuration	14/3
Conductor Colors	White, Green, Black
Insulation Material	Proprietary Premium Vinyl
Voltage Rating	600 volts
Temperature Rating	105°C dry, 75°C wet
Stranding	Ultra Flexible (Type 3/Class K) Tinned Copper
Standards	UL 1426, ABYC

Benefits

• Enhanced Durability: Built to withstand harsh marine environments, including exposure to saltwater, chemicals, and extreme temperatures.
• Easy Installation: Flexible design and color-coded conductors simplify the installation process, saving time and reducing errors.
• Long-Lasting Performance: High-quality materials and construction ensure the cable performs reliably over extended periods, minimizing maintenance needs.
• Safety Compliance: Meets and exceeds industry safety standards, providing peace of mind for marine electrical systems.

Applications

The White Triplex Cable - 14/3 is ideal for a wide range of marine electrical applications, including:

• Boat Lighting Systems
• Battery Charging Systems
• Marine Electronics Connections
• Navigation and Communication Equipment
• General Power Distribution

Installation Tips

• Ensure all connections are secure and free from corrosion before installation.
• Avoid sharp bends to maintain the integrity of the cable and prevent damage.
• Use appropriate cable clamps and supports to secure the cable along its path.
• Inspect the cable regularly for signs of wear or damage, especially in high-stress areas.
• Follow ABYC guidelines for all marine electrical installations to ensure safety and compliance.
