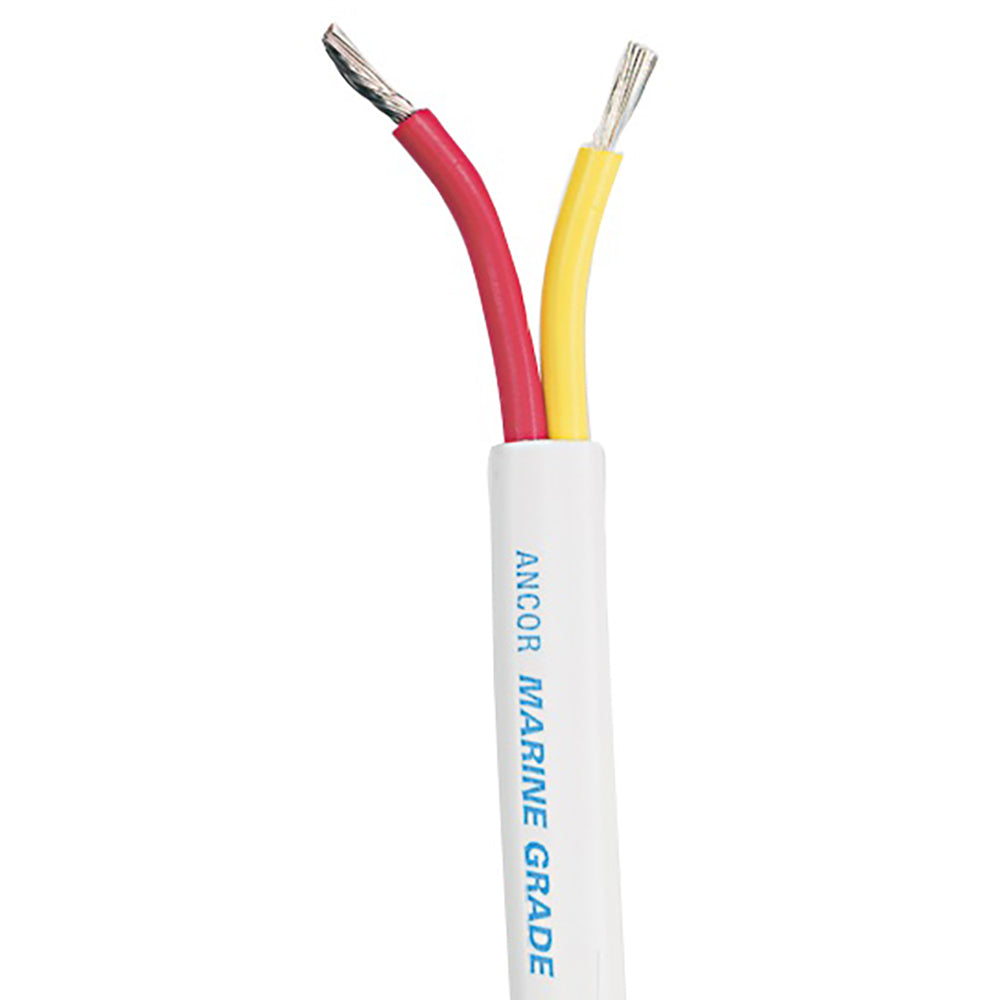

Ancor Safety Duplex Cable - 18/2 AWG - Red/Yellow - Flat - 250'

Ancor's Safety Duplex Cable is engineered specifically for marine and boating applications, offering reliable performance and exceptional durability. Featuring dual primary conductors in vibrant red and yellow, this cable ensures clear color-coding aligned with ABYC standards, facilitating easy identification and installation on your vessel.

Premium Construction

The cable is encased in a robust white outer jacket designed for effortless removal without compromising abrasion resistance. The ultra-flexible Type 3/Class K tinned copper stranding surpasses UL 1426 standards, providing maximum protection against corrosion, electrolysis, and the rigors of marine environments.

Superior Performance

Our Safety Duplex Cable is built to withstand the harshest marine conditions. The premium vinyl insulation is rated for 600V and can endure temperatures up to 105°C dry and 75°C wet. It remains flexible even in extreme cold temperatures down to -40°F/C and is highly resistant to saltwater, battery acid, oil, gasoline, heat, abrasion, and ultraviolet radiation, ensuring longevity and consistent performance.

Key Features

• Marine Grade, ABYC standard color-coded conductors
• Ultra-flexible Type 3/Class K tinned copper stranding
• 600V, 105°C dry and 75°C wet premium vinyl insulation
• Exceptional abrasion and corrosion resistance
• Flexible in temperatures as low as -40°F/C
• Resistant to saltwater, battery acid, oil, gasoline, heat, abrasion, and UV radiation

Specifications

Attribute	Details
Color	Red/Yellow
Length	250 feet
Gauge	18/2 AWG
Box Dimensions	5" H x 11" W x 11" L
Weight	9.4 lbs
UPC	091887806076
