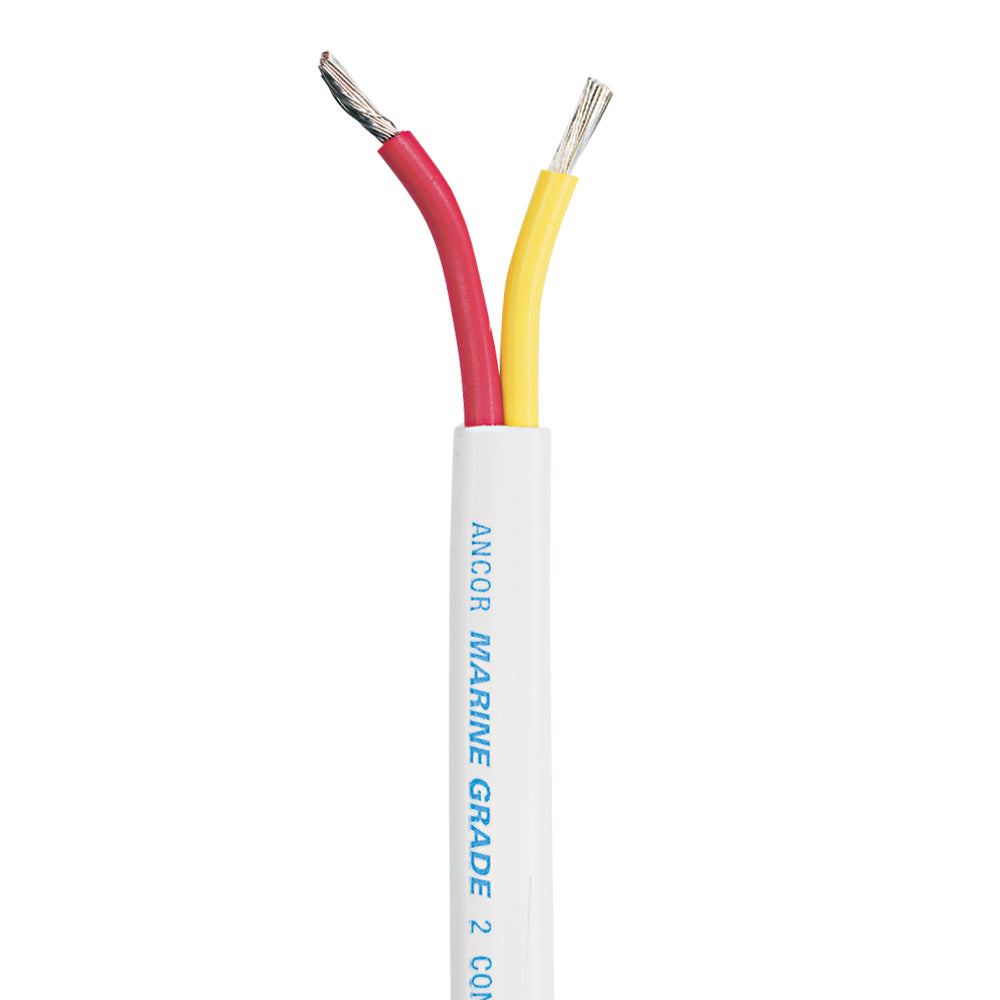

Ancor Safety Duplex Cable - 16/2 - 100'

The Safety Duplex Cable - 16/2 - 100' is engineered specifically for marine and boating applications, providing reliable and durable performance in harsh maritime environments. Whether you're outfitting your boat's electrical system or upgrading existing wiring, this cable ensures optimal safety and longevity.

Key Features

• Marine-Grade Construction: Surpasses UL Boat Cable standards with ultra-flexible Type 3/Class K stranding, designed to resist fatigue from constant vibration and flexing typically experienced on the water.
• Enhanced Durability: The outer jacket is crafted for easy removal and offers superior abrasion resistance, protecting the cable from wear and tear.
• Premium Insulation: ANCOR’s proprietary vinyl insulation remains flexible even in extreme cold and resists salt water, battery acid, oil, gasoline, and ultraviolet (UV) radiation. It is rated for 600 volts, withstands temperatures up to 105°C dry and 75°C wet, and offers excellent resistance to heat and abrasion.
• ABYC Compliance: Inner conductors are color-coded according to ABYC (American Boat and Yacht Council) standards, ensuring safe and standardized electrical installations.
• High Visibility Conductors: Features red and yellow Marine Grade™ primary conductors within a white common jacket for easy identification and organization.

Specifications

Attribute	Details
Color	Red/Yellow
Length	100 feet
Gauge	16/2 AWG
Box Dimensions	5" H x 7" W x 7" L
Weight	4.45 lbs
UPC	091887806014

Safety Information

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, visit P65Warnings.ca.gov.

Additional Resources

• Quick Guide (PDF)
• Brochure (PDF)
