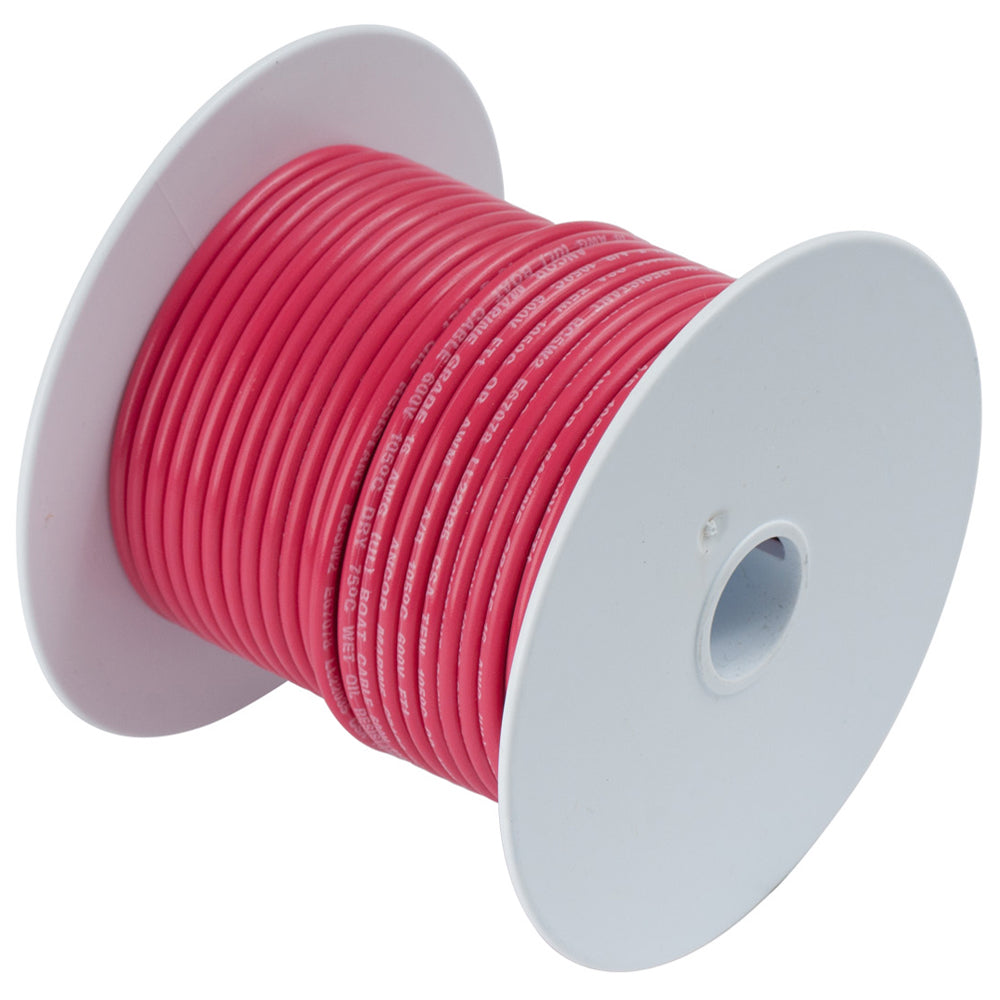

Ancor Red 18 AWG Tinned Copper Wire - 100'

The Red 18 AWG Tinned Copper Wire is engineered specifically for marine and boating applications, providing exceptional durability and reliable performance in the most demanding marine environments.

Unmatched Durability and Resistance

Our Ancor Marine Grade wire stands out as the most rugged and long-lasting option available. It surpasses industry standards including UL 1426, ABYC, and US Coast Guard Charter boat (CFR Title 46) requirements, ensuring safety and reliability for your marine electrical systems.

Premium Insulation for Enhanced Protection

Constructed with top-quality vinyl insulation, this wire is rated at 600V and can withstand temperatures up to 105°C in dry conditions and 75°C when wet. Its flexible insulation remains pliable even in extreme cold temperatures as low as -40°F/C, making it ideal for a wide range of boating environments.

Corrosion and Fatigue Resistance

The ultra-flexible Type 3 tinned copper stranding provides maximum protection against corrosion and electrolysis, critical for marine applications exposed to saltwater. Additionally, it resists fatigue caused by constant vibration and flexing, ensuring a long service life.

Chemical and Environmental Resistance

Our marine wire resists harsh chemicals including battery acid and gasoline, as well as oils, heat, abrasion, and ultraviolet (UV) radiation. This robust resistance ensures reliable performance and longevity, even under the toughest conditions.

Technical Specifications

Attribute	Details
Wire Gauge	18 AWG
Color	Red
Length	100 feet
Nominal Outer Diameter	7/64 inches (3 mm)
Box Dimensions	3"H x 3"W x 4"L
Weight	1.5 lbs
UPC	091887102024

Safety Information

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, visit P65Warnings.ca.gov.
