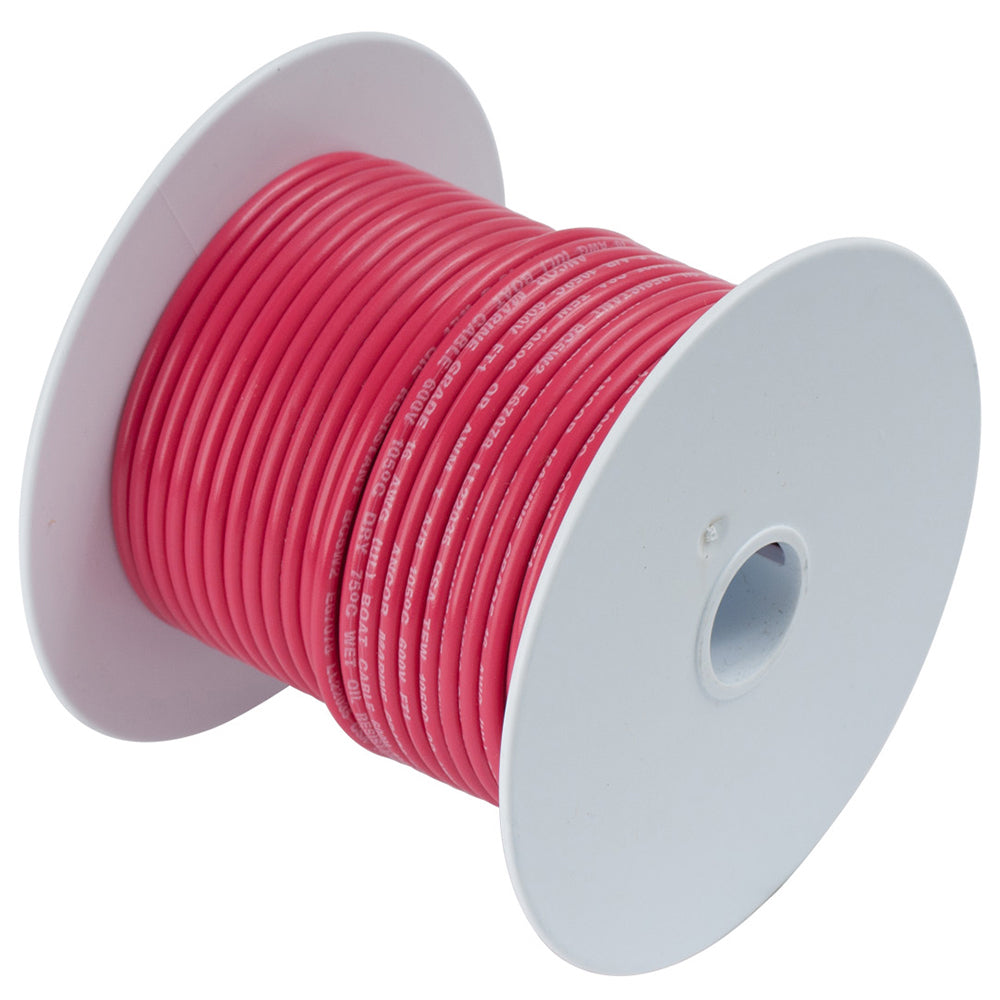

Ancor Red 16 AWG Primary Wire - 100'

Experience superior performance and durability on the water with our Red 16 AWG Primary Wire. Spanning 100 feet, this high-quality wire is specifically designed for marine and boating applications, ensuring reliable power distribution and exceptional resistance against the harsh marine environment.

Features

• Corrosion and Electrolysis Resistant: Manufactured from tinned copper stranding, ANCOR Marine Grade™ wire offers maximum protection against corrosion and electrolysis, ensuring longevity even in challenging marine conditions.
• Ultra Flexible Stranding: The Type 3 stranding resists fatigue from constant vibration and flexing, providing consistent performance and easy installation.
• Premium Vinyl Insulation: ANCOR's proprietary vinyl insulation remains flexible even in extreme cold and is resistant to salt water, battery acid, oil, gasoline, and UV radiation, ensuring reliable insulation and safety.
• High-Performance Rating: The exclusive insulation is rated at 600 volts, with temperature ratings of 105°C dry and 75°C wet, offering robust protection against heat and abrasion.
• Industry Standard Compliance: Exceeds UL 1426, US Coast Guard Charter Boat (CFR Title 46), and ABYC standards, ensuring top-tier quality and safety for your marine electrical systems.

Specifications

Color	Red
Length	100 feet
Gauge	16 AWG
Box Dimensions	4"H x 4"W x 4"L
Weight	1.5 lbs
UPC	091887103663

Compliance and Standards

Our Red 16 AWG Primary Wire not only meets but exceeds industry standards, including:

• UL 1426
• US Coast Guard Charter Boat (CFR Title 46)
• ABYC Standards

Safety Warning

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, visit P65Warnings.ca.gov.

Resources

• Quick Guide (PDF)
• Brochure (PDF)
