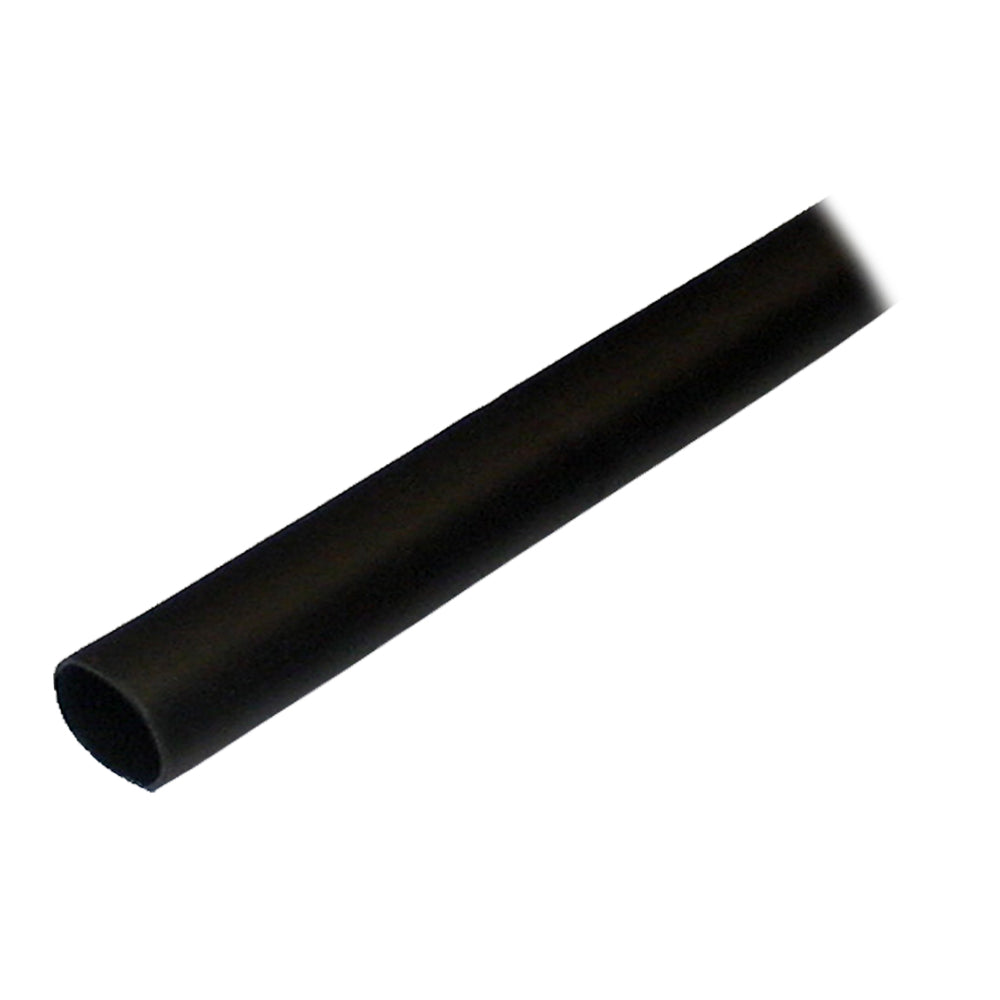

Ancor Adhesive Lined Heat Shrink Tubing (ALT) - 1/2" x 48" - 1-Pack - Black

The Adhesive Lined Heat Shrink Tubing (ALT) is an indispensable tool for marine and boating enthusiasts, ensuring secure and insulated electrical connections in demanding maritime environments. Designed to withstand exposure to saltwater, UV rays, and varying temperatures, this black heat shrink tubing offers reliability and longevity for all your marine electrical needs.

Key Features

• Durable Material: Made from cross-linked polyolefin tubing, providing superior strength compared to PVC tubing and offering excellent resistance to burning.
• Adhesive Lining: Heat-activated adhesive lining creates a watertight seal against saltwater, oil, acids, and sunlight, while also providing effective strain relief to protect your connections.
• High Shrink Ratio: Shrinks to one-third of its original size, ensuring a tight and secure fit around your wires and connectors.
• Easy Installation: Activates and shrinks at 257°F (125°C), allowing for straightforward and reliable installation with heat tools.
• Wide Temperature Range: Operates efficiently in extreme temperatures from -40°C to 110°C, making it ideal for various marine conditions.
• UL Certified: Complies with UL 224 standards, ensuring quality and safety in your marine applications.

Technical Specifications

Dimension	48" (122 cm) length x 1/2" (12.7 mm) diameter
Shrunk Diameter	5/32" (4 mm)
Wire Range	8-4 AWG
Shrink Ratio	1:3
Shrink Temperature	257°F (125°C)
Operating Temperature Range	-40°C to 110°C
Box Dimensions	1"H x 1"W x 48"L
Weight	0.1 lbs
UPC	091887808711

Usage Instructions

To ensure optimal performance of the Adhesive Lined Heat Shrink Tubing in your marine projects, follow these steps:

1. Measure and cut the tubing to the desired length.
2. Slide the tubing over the wire or connection that needs protection.
3. Use a heat gun or appropriate heat source to apply even heat around the tubing until it shrinks to the specified diameter.
4. Allow the tubing to cool, forming a secure and sealed insulation around the connection.

Safety Information

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, visit P65Warnings.ca.gov.

Why Choose Our Heat Shrink Tubing?

Our Adhesive Lined Heat Shrink Tubing is specifically designed to meet the rigorous demands of marine environments. Whether you're working on boat electrical systems, marine electronics, or other maritime applications, our heat shrink tubing provides the protection and durability you need to ensure safe and reliable operations on the water.
