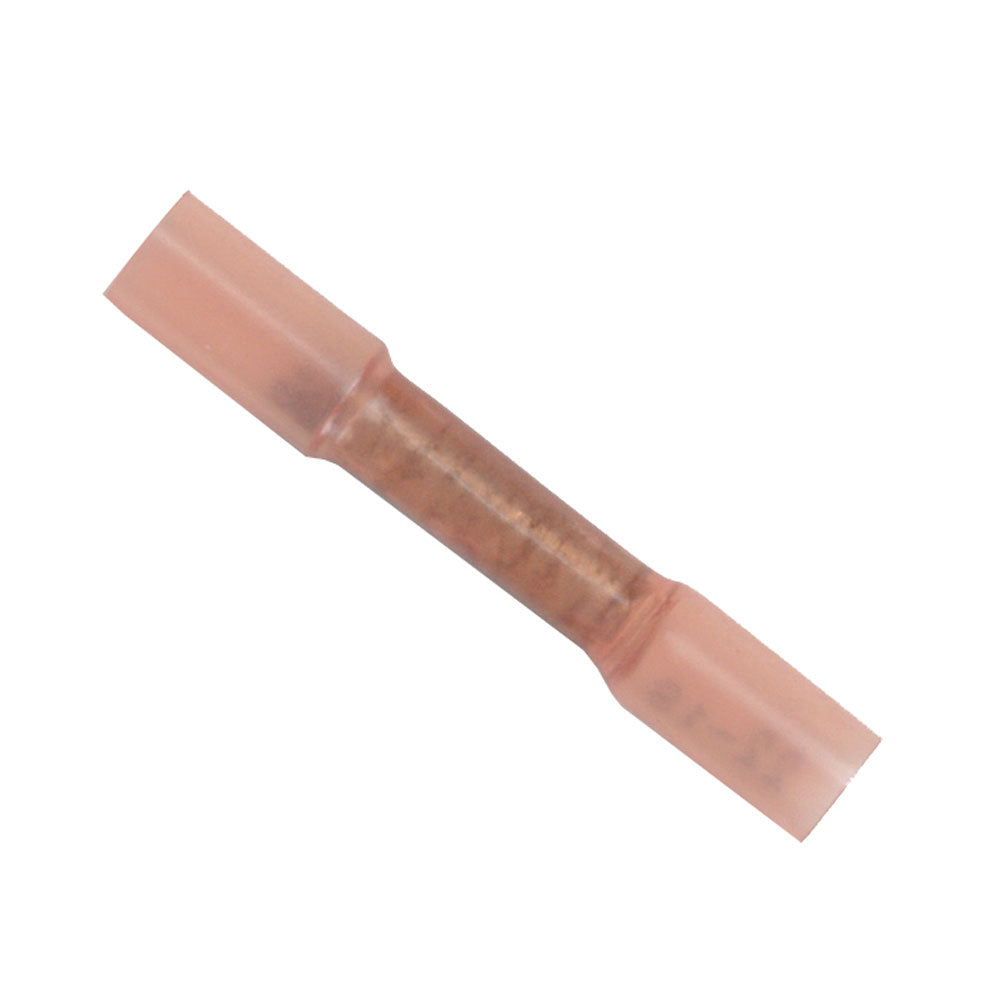

Ancor 22-18 Heatshrink Butt Connectors - 3-Pack

Ensure reliable and secure electrical connections on your vessel with our 22-18 Heatshrink Butt Connectors. Designed specifically for marine applications, these connectors provide superior protection against the harsh marine environment, ensuring longevity and performance in all your boating electrical projects.

Key Features

• Durable Construction: Made with cross-linked polyolefin tubing, these connectors are significantly stronger than standard PVC tubing and are resistant to burning.
• Superior Sealing: Heat-activated adhesive lining creates an impervious seal against salt water, oil, acids, and sunlight, while also providing strain relief.
• Marine-Grade Insulation: Features a nylon insulator, preferred by experts for its resistance to sunlight, water, oil, chemicals, vibration, and cut-through damage.
• Certified Quality: UL Listed and CSA Recognized for safety and reliability.
• High Shrink Ratio: Shrinks to one-third of its original size, ensuring a tight and secure fit.
• Heat Shrink Temperature: Shrinks at 257°F (125°C) for efficient installation.
• Operating Temperature Range: Suitable for environments between 40°C to 110°C.
• Integrated Strain Relief: ANCOR heat shrink connectors come with built-in heat-activated adhesive for a watertight seal and enhanced vibration and strain relief.
• Corrosion Resistant: Tinned for added protection against corrosion in marine settings.
• High Conductivity: Made with pure copper to ensure maximum current flow.
• Strong Connection: Features a brazed seam for maximum strength and durability.
• Wire Gauge Range: Compatible with wires ranging from 22 to 18 AWG.
• Wire Size: Suitable for wires with diameters between 0.3 - 0.8 mm.

Technical Specifications

Gauge	22-18 AWG
Type	Butt Connectors
Package Quantity	3
Heat Shrink	Yes
Box Dimensions	1"H x 1"W x 1"L
Weight	0.1 lbs
UPC	091887307863

Safety Information

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, visit P65Warnings.ca.gov.

Additional Resources

Quick Guide (PDF)
