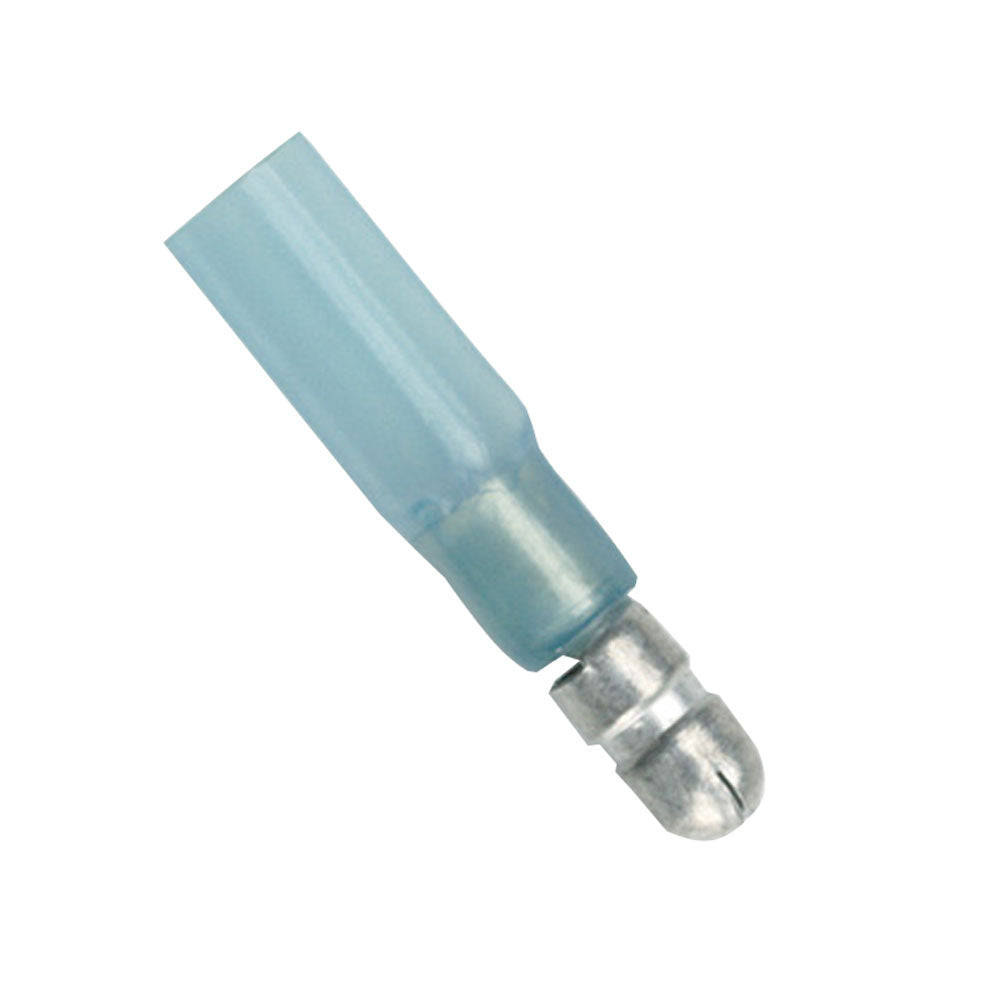

Ancor 16-14 Male Heatshrink Snap Plug - 100-Pack

The 16-14 Male Heatshrink Snap Plug is engineered specifically for marine and boating applications, offering robust and reliable electrical connections in demanding environments. Whether you're outfitting your boat's wiring harness or performing essential electrical repairs, this 100-pack ensures consistent performance and protection against the elements.

Key Features

• Enhanced Durability: Constructed with cross-linked polyolefin tubing, these snap plugs are significantly stronger than standard PVC tubing and offer superior resistance to burning and physical damage.
• Superior Sealing: The heat-activated adhesive lining creates an impermeable barrier against saltwater, oil, acids, and UV exposure, ensuring long-lasting protection and minimizing maintenance needs.
• Marine Grade Insulation: Featuring nylon insulators that are highly regarded by marine experts, these snap plugs provide excellent resistance to sunlight, water, oil, chemicals, vibration, and cut-through damage.
• Certified Safety: Compliant with UL Listed and CSA Recognized standards, guaranteeing adherence to high safety and quality benchmarks.
• High Shrink Ratio: Capable of shrinking to one-third of their original size, these connectors offer a compact and secure fit, ideal for tight marine environments.
• Efficient Installation: Shrinks at 257°F (125°C), allowing for quick and effective application with standard heat sources.
• Broad Operating Range: Designed to operate seamlessly between 40°C to 110°C, making them suitable for various marine electrical systems.
• Integrated Adhesive Sleeve: ANCOR connectors include a built-in adhesive in the heat shrink tubing, ensuring a watertight seal and optimal strain relief.
• Corrosion Resistance: Tinned finishes provide excellent protection against corrosion, extending the life of your electrical connections.
• High Conductivity: Made with pure copper to ensure maximum current flow and reliable electrical performance.
• Robust Construction: Brazed seam design ensures maximum strength and durability, capable of withstanding the rigors of marine environments.

Specifications

Feature	Details
Wire Range	16-14 AWG / 0.197 inches
Size	3-5mm / 5mm
Gender	Male
Quantity per Package	100
Heat Shrink	Yes
Gauge	16-14 AWG
Type	Snap Plugs
Shrink Ratio	Shrinks to 1/3 original size
Shrink Temperature	257°F / 125°C
Operating Temperature Range	40°C to 110°C
Box Dimensions	2"H x 3"W x 4"L
Weight	0.2 lbs
UPC	091887807752

Download the Brochure (PDF)

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (DEHP) which is known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, visit P65Warnings.ca.gov.
