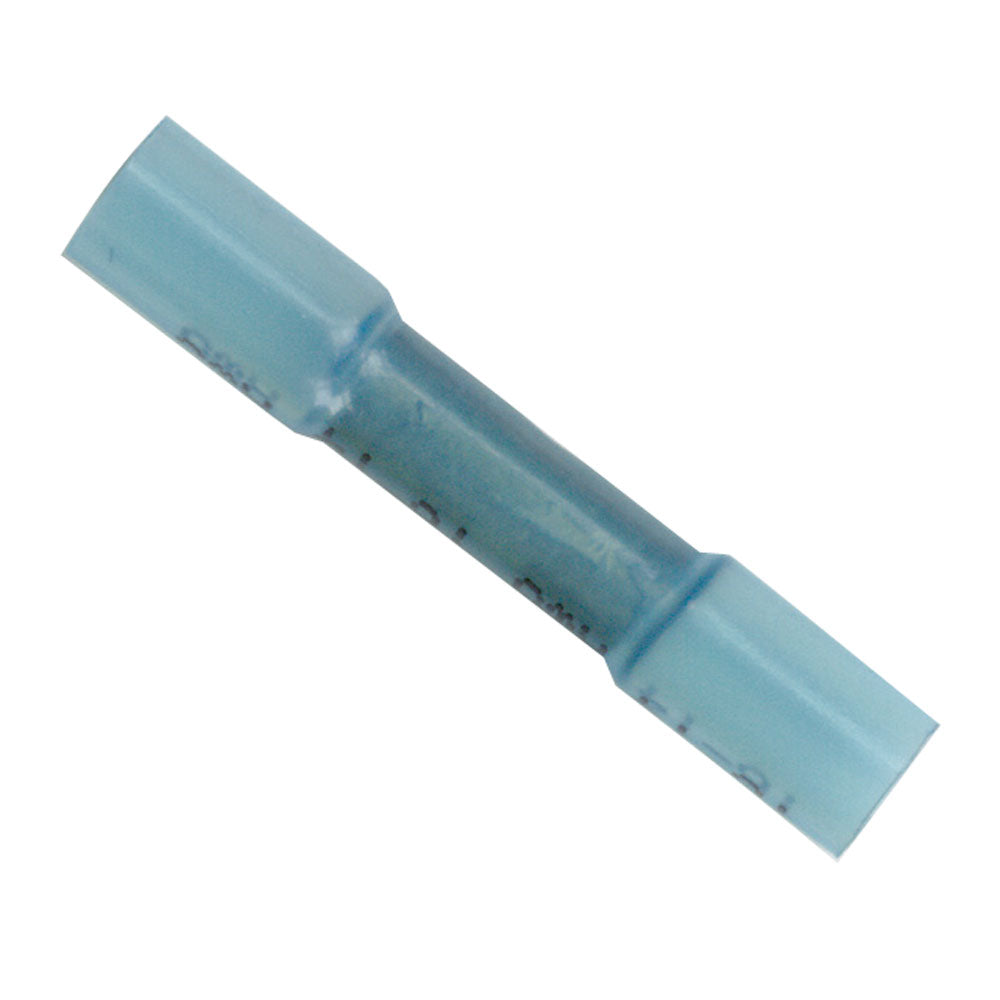

Ancor 16-14 Heatshrink Butt Connectors - 500-Pack

Ensure reliable and durable electrical connections on your boat with our 16-14 Heatshrink Butt Connectors. Designed specifically for marine applications, these connectors provide superior protection against harsh marine environments, offering long-lasting performance and peace of mind.

Product Features

• Superior Material: Cross-linked polyolefin tubing is significantly stronger than PVC tubing and does not burn like PVC, ensuring robust protection for your electrical connections.
• Heat-Activated Adhesive: The lining provides an impervious seal against saltwater, oil, acids, and sunlight, while also offering strain relief for your wiring.
• Marine-Grade Nylon Insulator: Preferred by experts, it offers resistance to sunlight, water, oil, chemicals, vibration, and cut-through damage, making it ideal for marine environments.
• Certified Quality: UL Listed and CSA Recognized for safety and reliability.
• High Shrink Ratio: Shrinks to one-third of the original size, providing a compact and secure fit.
• Shrink Temperature: Activates at 257°F (125°C), ensuring easy installation with standard heat sources.
• Operating Temperature Range: Suitable for environments between 40°C to 110°C.
• Ultimate Protection: Forms a watertight seal and provides maximum vibration and strain relief.
• Corrosion Resistant: Tinned for enhanced corrosion resistance, crucial for marine use.
• Pure Copper Contacts: Ensures maximum current flow with reliable electrical performance.
• Brazed Seam: Offers maximum strength and durability for demanding marine conditions.
• Wire Range: Compatible with 16-14 AWG wires.
• Size: 1-2 mm.

Specifications

Type	Butt Connectors
Package Quantity	500
Heat Shrink	Yes
Gauge	16-14 AWG
Box Dimensions	3"H x 5"W x 8"L
Weight	1.8 lbs
UPC	091887308242

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Download Quick Guide (PDF)
