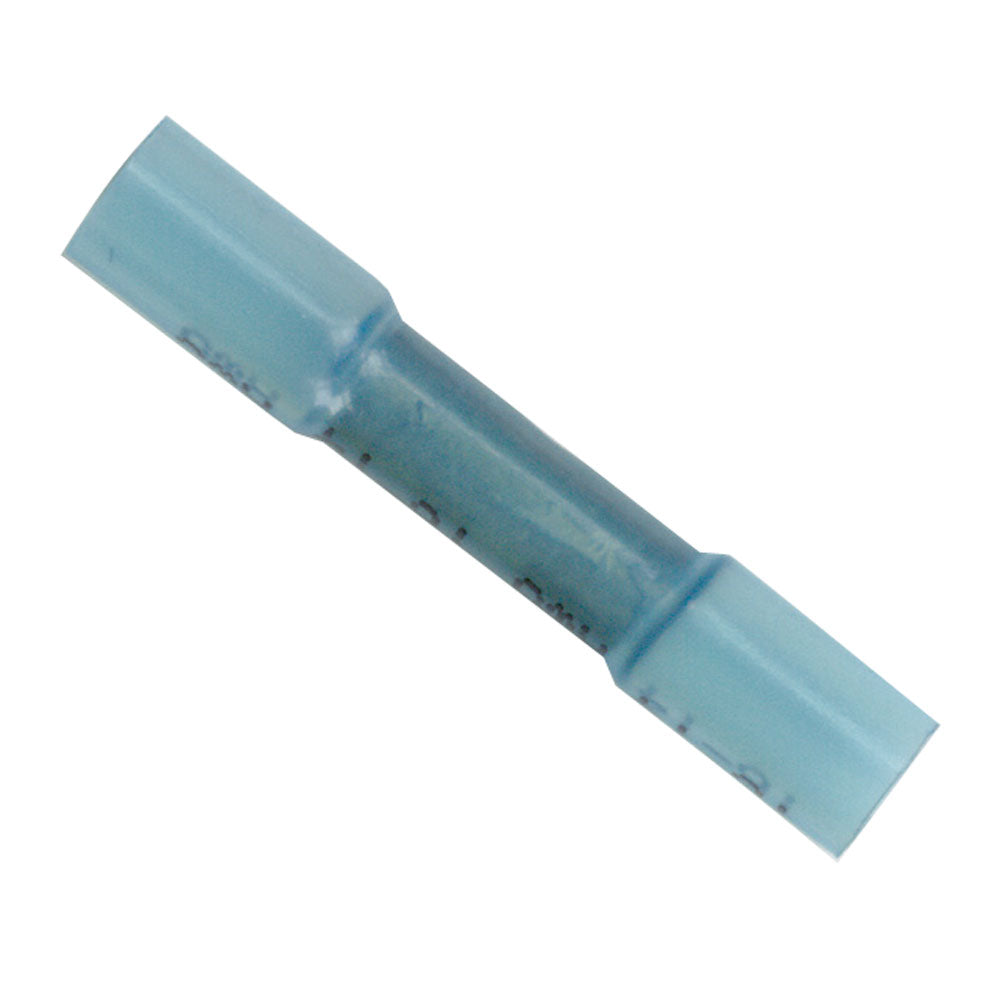

Ancor 16-14 Heatshrink Butt Connectors - 3-Pack

Ensure reliable and secure electrical connections on your boat with our 16-14 Heatshrink Butt Connectors. Designed specifically for marine applications, these connectors provide superior protection against harsh marine environments, including exposure to saltwater, sunlight, and vibrations. Whether you're upgrading your boat's wiring or performing essential repairs, these heatshrink connectors offer the durability and performance you need to keep your marine electrical systems running smoothly.

Key Features

• Durable Construction: Constructed with cross-linked polyolefin tubing, these connectors are significantly stronger than PVC alternatives and offer enhanced fire resistance.
• Superior Sealing: Heat-activated adhesive lining ensures an impervious seal against saltwater, oil, acids, and UV exposure, providing long-lasting protection and strain relief.
• Marine-Grade Insulation: Equipped with a nylon insulator, these connectors resist sunlight, water, oil, chemicals, and mechanical damage, making them ideal for marine environments.
• Certified Safety: UL Listed and CSA Recognized, ensuring compliance with industry standards for safety and performance.
• High Shrink Ratio: Shrinks to one-third of its original size at 257°F (125°C), ensuring a tight and secure fit.
• Wide Operating Range: Functions reliably within a temperature range of 40°C to 110°C, suitable for diverse marine conditions.
• Enhanced Protection: Features tinned pure copper for maximum current flow and a brazed seam for added strength and corrosion resistance.
• Versatile Compatibility: Compatible with wire gauges ranging from 16 to 14 AWG, accommodating a variety of marine electrical setups.

Technical Specifications

Parameter	Details
Type	Butt Connectors
Quantity	3-Pack
Gauge Size	16-14 AWG
Heat Shrink	Yes
Box Dimensions	1"H x 1"W x 1"L
Weight	0.1 lbs
UPC	091887307924

Why Choose Our Heatshrink Butt Connectors?

Our connectors are engineered for marine applications, where reliability and durability are paramount. The integrated heat-activated adhesive ensures a permanent seal that resists environmental challenges, while the pure copper construction guarantees optimal electrical performance. Additionally, the tinned finish prevents corrosion, extending the lifespan of your connections even in saltwater conditions.

Installation Guide

Installing our 16-14 Heatshrink Butt Connectors is straightforward:

1. Strip the insulation from the ends of the wires you wish to connect.
2. Insert the stripped wires into the butt connector until they reach the end.
3. Use a soldering iron or heat gun to apply heat evenly around the connector, causing the heatshrink tubing to contract and the adhesive to activate, forming a secure seal.
4. Allow the connector to cool for a few moments before handling.

For a detailed installation process, refer to our Quick Guide (PDF).

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (DEHP) which is known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, visit P65Warnings.ca.gov.
