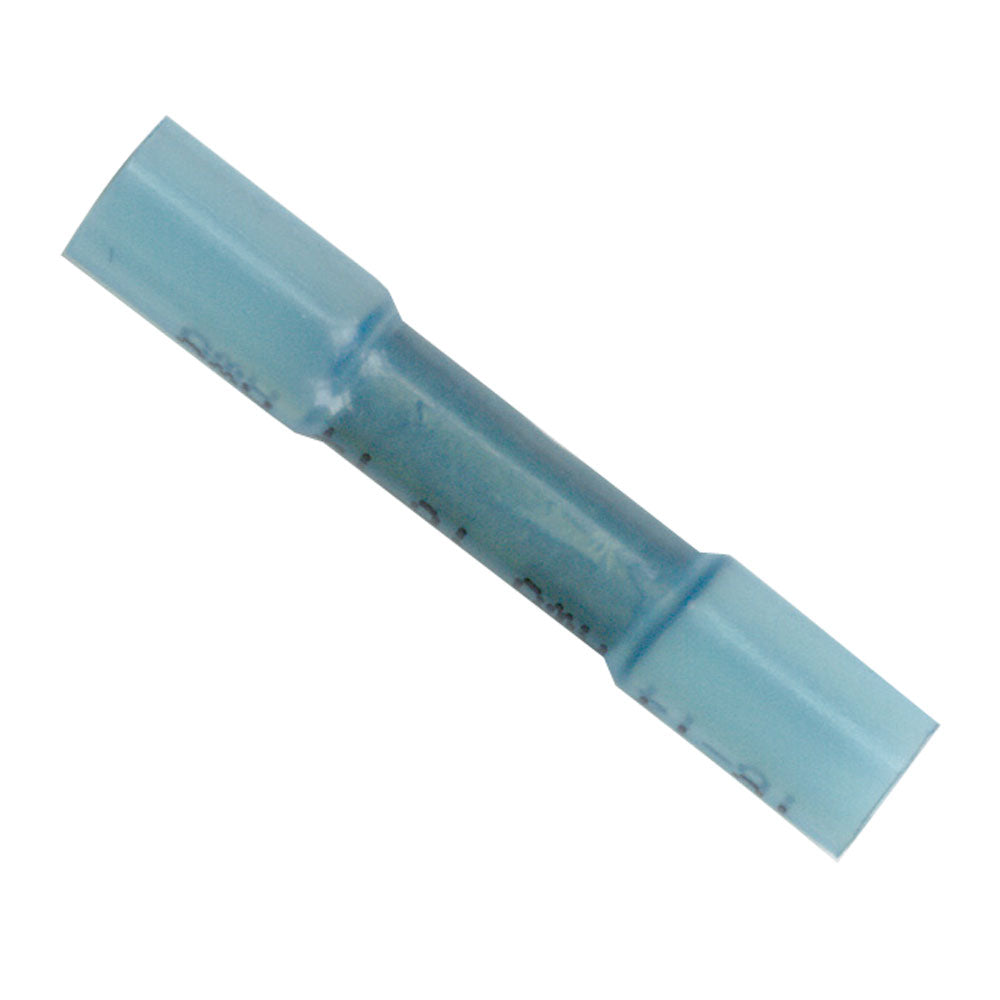

Ancor 16-14 Heatshrink Butt Connectors - 25-Pack

Ensure secure and durable electrical connections on your boat with our 16-14 Heatshrink Butt Connectors. Designed specifically for marine applications, these connectors provide robust protection against the elements, ensuring reliable performance in even the harshest marine environments.

Product Features

• Superior Material: Cross-linked polyolefin tubing is significantly stronger and more heat-resistant than PVC tubing, ensuring long-lasting performance without burning.
• Advanced Sealing: Heat-activated adhesive lining creates an impervious seal against salt water, oil, acids, and sunlight, while also providing effective strain relief.
• Marine-Grade Insulation: Features a nylon insulator, favored by experts for its resistance to sunlight, water, oil, chemicals, vibration, and cut-through damage.
• Certifications: UL Listed and CSA Recognized for safety and quality assurance.
• High Shrink Ratio: Shrinks up to one-third of its original size to ensure a secure fit.
• Effective Shrinking Temperature: Activates and shrinks at 257°F (125°C).
• Operating Temperature Range: Functions optimally between 40°C to 110°C.
• Heat Shrink Technology: Heat-activated adhesive built into the tubing sleeve forms a watertight seal, providing ultimate vibration and strain relief.
• Corrosion Resistance: Tinned connectors resist corrosion, ideal for marine environments.
• Electrical Performance: Made with pure copper to ensure maximum current flow.
• Durability: Brazed seam offers maximum strength and reliability.
• Wire Range: Compatible with wires ranging from 16 to 14 AWG.
• Dimensions: 1-2 mm diameter.

Specifications

Type	Butt Connectors
Package Quantity	25
Heat Shrink	Yes
Gauge	16-14 AWG
Box Dimensions	1" H x 4" W x 4" L
Weight	0.2 lbs
UPC	091887305685

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Download Quick Guide (PDF)
