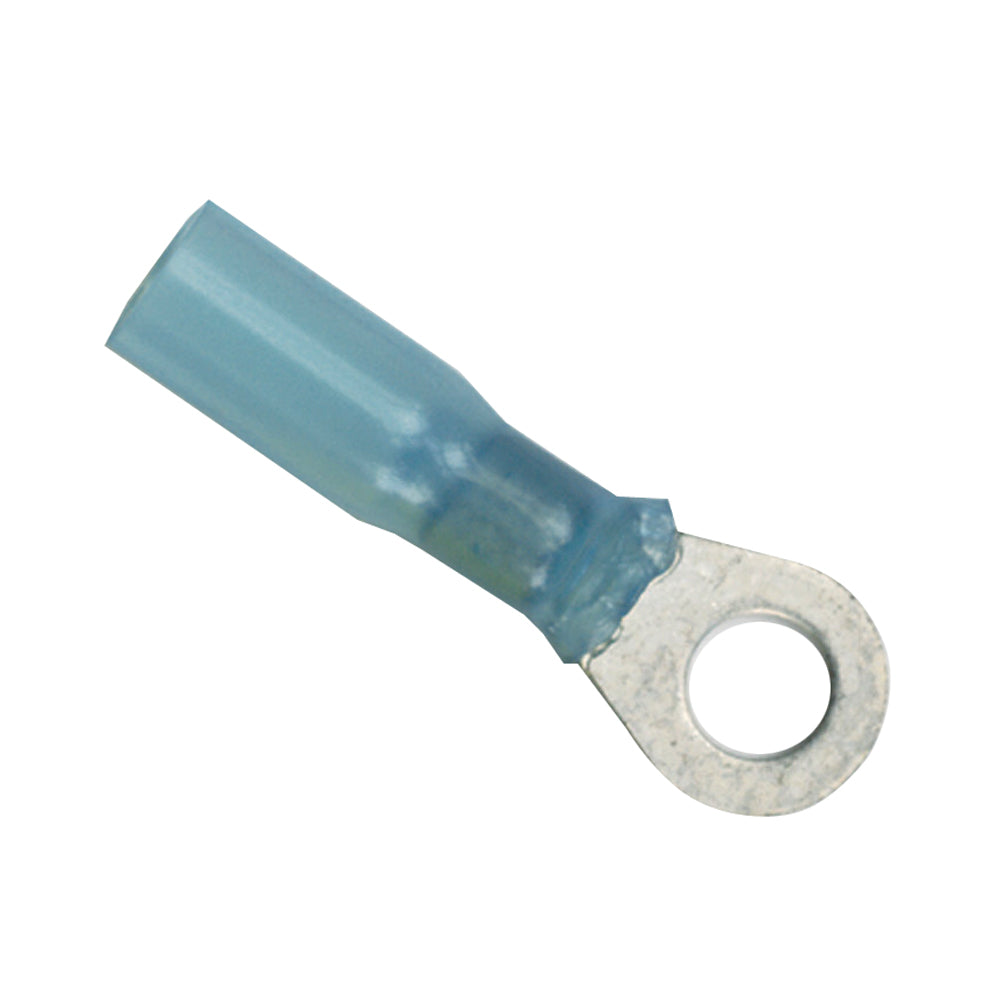

Ancor 16-14 Gauge - 5/16" Heat Shrink Ring Terminal - 100-Pack

Ensure reliable and durable electrical connections on your boat with our 16-14 Gauge - 5/16" Heat Shrink Ring Terminals. Specifically designed for marine applications, these terminals provide superior protection against harsh marine environments, ensuring your wiring remains secure and protected.

Key Features

• Superior Tubing: Crafted with cross-linked polyolefin tubing, offering enhanced strength over standard PVC tubing. This material is also flame-resistant, providing an added layer of safety.
• Advanced Protection: Heat-activated adhesive lining creates a hermetic seal, safeguarding against salt water, oil, acids, and UV exposure. This ensures long-lasting protection and strain relief for your connections.
• Marine-Grade Insulation: Features a nylon insulator preferred by marine experts, delivering exceptional resistance to sunlight, water, oil, chemicals, vibration, and potential cut-through damage.
• Certified Quality: UL Listed and CSA Recognized, guaranteeing compliance with industry safety standards.
• Optimal Shrink Ratio: Shrinks to one-third of the original size for a compact and secure fit.
• High Shrink Temperature: Activates and shrinks at 257°F (125°C), ensuring reliable application even in demanding conditions.
• Wide Operating Range: Effective performance within a temperature range of 40°C to 110°C.
• Integrated Adhesive: ANCOR heat shrink connectors feature built-in heat-activated adhesive for a waterproof seal and enhanced vibration and strain relief.
• Corrosion Resistance: Tinned for enhanced corrosion resistance, extending the lifespan of your electrical connections in marine environments.
• Pure Copper Construction: Made from pure copper to ensure maximum current flow and electrical conductivity.
• Robust Design: Brazed seam construction provides maximum strength and durability for critical marine applications.

Specifications

Gauge	16-14 AWG
Type	Ring Terminals
Package Quantity	100
Heat Shrink	Yes
Box Dimensions	2" H x 3" W x 7" L
Weight	0.4 lbs
UPC	091887313185

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, visit P65Warnings.ca.gov.

Additional Resources

• Quick Guide (PDF)
• Brochure (PDF)
