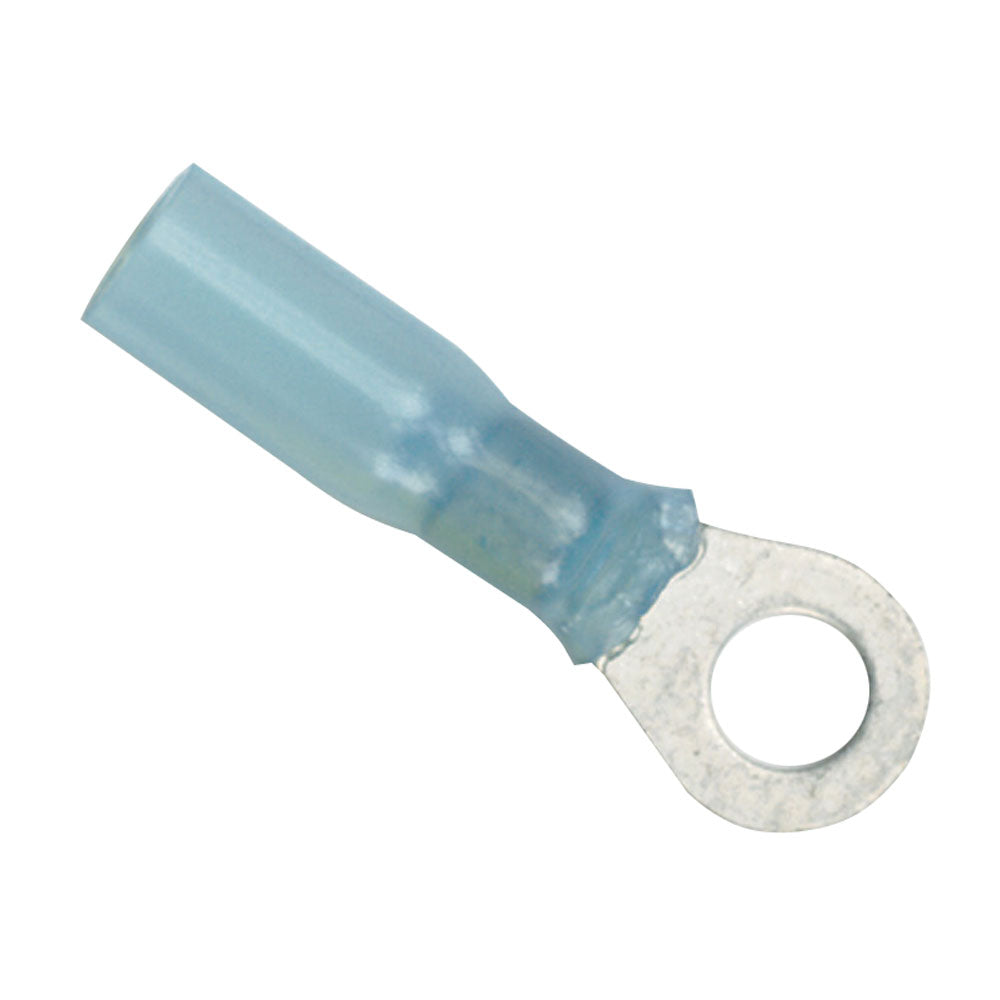

Ancor 16-14 Gauge - #10 Heat Shrink Ring Terminal - 100-Pack

Ensure reliable and secure electrical connections on your vessel with our premium #10 Heat Shrink Ring Terminals. Specifically designed for marine applications, these ring terminals provide exceptional durability and protection against the harsh marine environment, including exposure to saltwater, UV rays, and vibration.

Key Features

• Superior Tubing Material: Crafted from cross-linked polyolefin tubing, these terminals offer enhanced strength compared to traditional PVC tubing and are flame-resistant.
• Advanced Adhesive Lining: Features a heat-activated adhesive that creates an impervious seal against saltwater, oil, acids, and sunlight, ensuring long-lasting protection and strain relief.
• Marine-Grade Insulator: Equipped with a nylon insulator, these terminals provide outstanding resistance to sunlight, water, oil, chemicals, vibration, and cut-through damage, making them the preferred choice for marine professionals.
• Safety Certifications: UL Listed and CSA Recognized for compliance with safety standards.
• High Shrink Ratio: Shrinks to one-third of its original size at 257° F (125° C), ensuring a tight and secure fit.
• Wide Operating Temperature Range: Suitable for environments ranging from 40° C to 110° C.
• Corrosion Resistance: Tinned for enhanced protection against corrosion in marine settings.
• Pure Copper Construction: Ensures maximum current flow and optimal electrical performance.
• Brazed Seam: Provides maximum strength and durability for demanding applications.

Technical Specifications

Type	Ring Terminals
Gauge Size	16-14 AWG
Screw Size	#10
Quantity	100-Pack
Heat Shrink	Yes
Shrink Temperature	257° F / 125° C
Operating Temperature Range	40° C to 110° C
Box Dimensions	2"H x 3"W x 5"L
Weight	0.25 lbs
UPC	091887313123

Why Choose Our Heat Shrink Ring Terminals?

Our ANCOR Heat Shrink Ring Terminals are engineered to meet the rigorous demands of marine and boating applications. The integrated heat-activated adhesive ensures a watertight seal, providing ultimate vibration and strain relief to maintain secure electrical connections even in the most challenging conditions.

With pure copper construction and a brazed seam, these terminals deliver maximum current flow and strength, ensuring optimal performance and longevity. Whether you're upgrading your boat's electrical system or undertaking a new marine project, these ring terminals offer the reliability and protection you need.

Safety Information

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (DEHP) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information, visit P65Warnings.ca.gov.

Additional Resources

• Quick Guide (PDF)
• Brochure (PDF)
