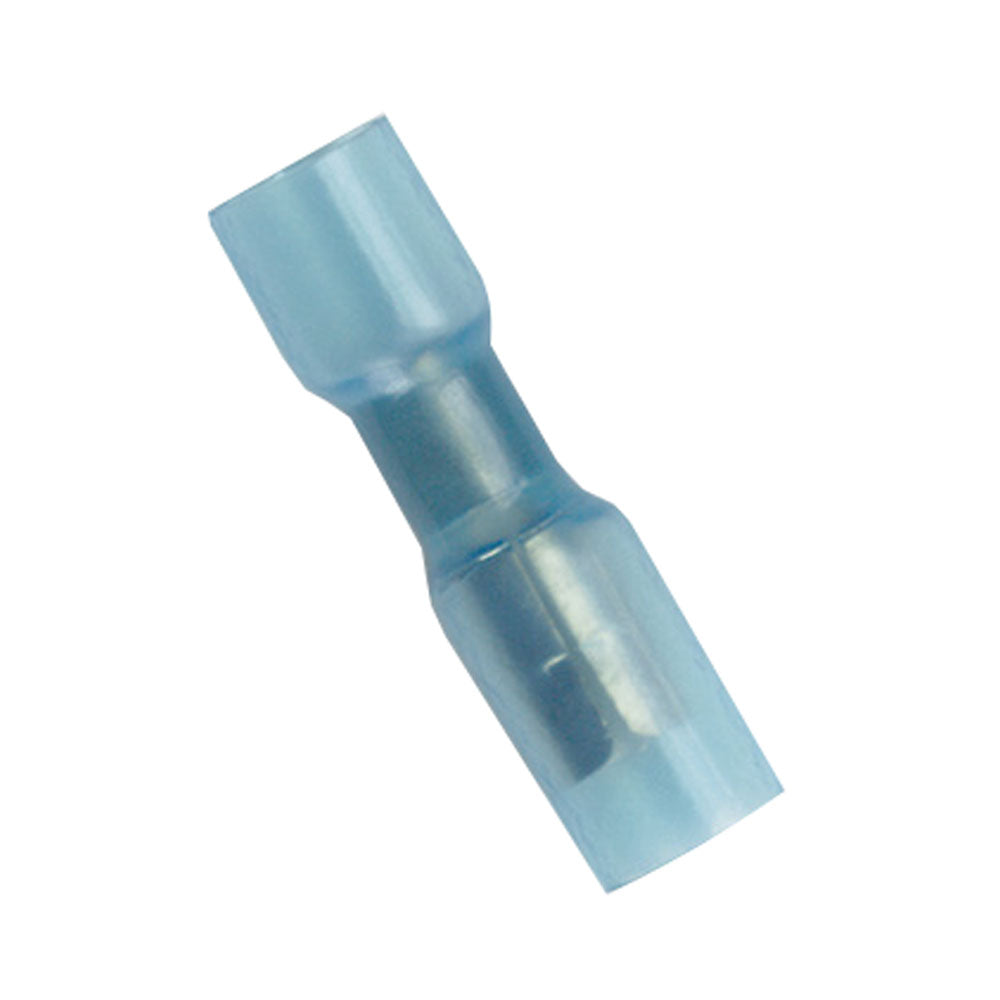

Ancor 16-14 Female Heatshrink Snap Plug - 100-Pack

Ensure robust and reliable electrical connections on your vessel with our 16-14 Female Heatshrink Snap Plug. Designed specifically for marine and boating applications, these heat shrink snap plugs provide superior protection against the harsh maritime environment, ensuring your electrical systems remain safe and efficient.

Superior Durability for Marine Applications

• Enhanced Material Strength: Crafted from cross-linked polyolefin tubing, these heat shrink snap plugs offer greater strength and resistance compared to traditional PVC tubing. Unlike PVC, polyolefin does not burn, ensuring safer connections.
• Marine-Grade Nylon Insulator: The high-quality nylon insulator is favored by marine experts for its exceptional resistance to sunlight, water, oil, chemicals, vibration, and cut-through damage, making it ideal for the demanding conditions at sea.

Exceptional Sealing and Protection

• Heat Activated Adhesive Lining: Provides an impervious seal against salt water, oil, acids, and prolonged sunlight exposure, while also offering reliable strain relief to protect against mechanical stress.
• Waterproof and Corrosion-Resistant: The heat shrink tubing forms a watertight seal, preventing moisture ingress and corrosion. Additionally, the connectors are tinned to further enhance corrosion resistance, ensuring longevity in marine environments.

Reliable Performance Under Harsh Conditions

• Wide Operating Temperature Range: Operates efficiently between -40°C to 110°C, making it suitable for various marine climate conditions.
• High Shrink Ratio: Shrinks to one-third of its original size at 257°F (125°C), providing a compact and secure fit that maintains connection integrity.
• Ultimate Strain and Vibration Relief: The heat shrink tubing and adhesive seamlessly join to absorb vibrations and reduce strain on electrical connections, minimizing the risk of wear and tear.

Certified Safety and Quality

• UL Listed and CSA Recognized: Meets rigorous industry standards for safety and performance, ensuring dependable use in your marine projects.
• Pure Copper Construction: Utilizes pure copper for maximum current flow, ensuring efficient electrical performance.
• Brazed Seam: Features a brazed seam for maximum strength and durability, providing a reliable connection even in challenging conditions.

Product Specifications

Type	Snap Plugs
Package Quantity	100
Heat Shrink	Yes
Gauge	16-14 AWG
Wire Range	16-14/.197
Size	3-5mm/5mm
Gender	Female
Box Dimensions	1"H x 3"W x 8"L
Weight	0.8 lbs
UPC	091887807714

Additional Resources

• Quick Guide (PDF)
• Brochure (PDF)
