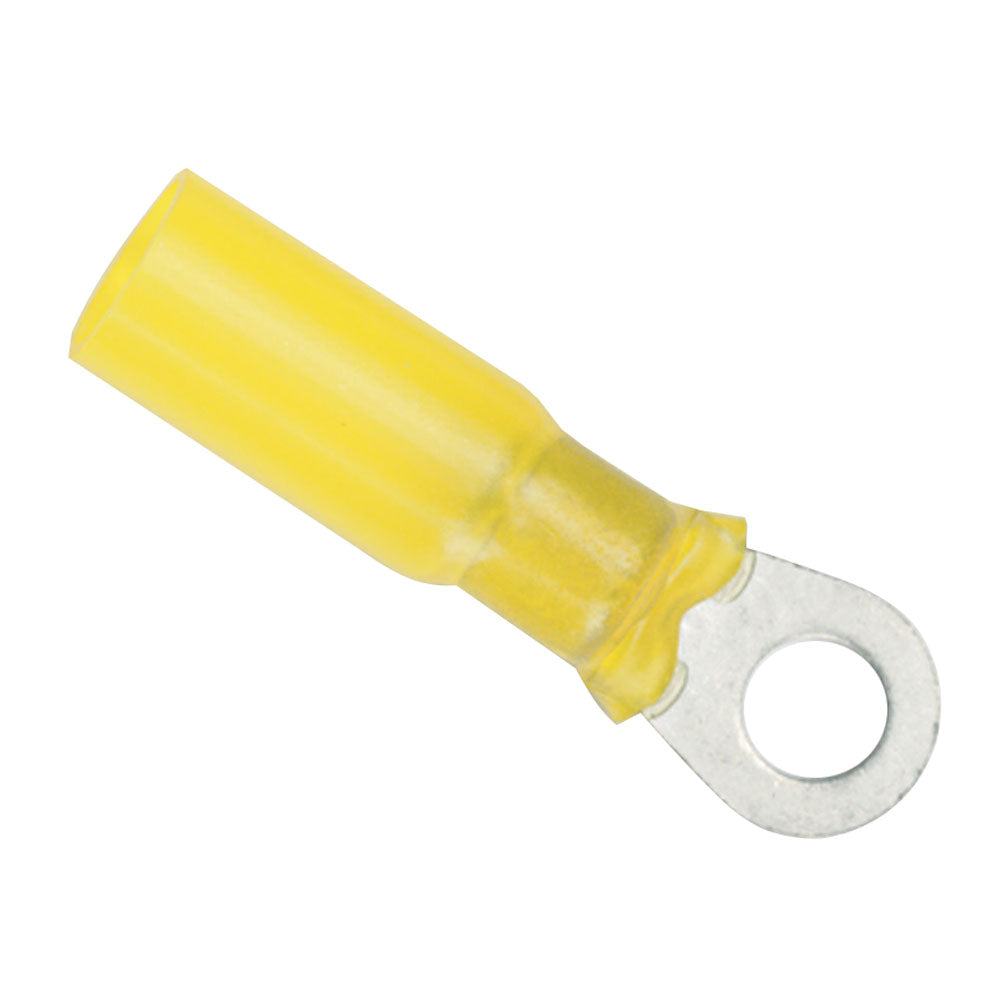

Ancor 12-10 Gauge - 5/16" Heat Shrink Ring Terminal - 100-Pack

Ensure reliable and durable electrical connections on your marine vessel with our 12-10 Gauge 5/16" Heat Shrink Ring Terminals. Designed specifically for the harsh marine environment, these ring terminals provide superior protection against saltwater, corrosion, and vibration, ensuring your boat's electrical systems perform flawlessly.

Key Features

• Superior Material: Constructed with cross-linked polyolefin tubing, offering enhanced strength over PVC and superior resistance to burning.
• Exceptional Sealing: Heat-activated adhesive lining creates an impervious seal against saltwater, oil, acids, and UV exposure, while providing strain relief.
• Marine-Grade Insulation: Features a nylon insulator preferred by experts for its resistance to sunlight, water, oil, chemicals, vibration, and cut-through damage.
• Certified Safety: UL Listed and CSA Recognized for meeting stringent safety standards.
• High Shrink Ratio: Shrinks to one-third of its original size at 257° F/125° C, ensuring a snug and secure fit.
• Wide Operating Range: Functions reliably within a temperature range of 40° C to 110° C.
• Advanced Adhesive Technology: Integrated heat-activated adhesive in the heat shrink tubing sleeve for a watertight seal and optimal vibration and strain relief.
• Corrosion Resistance: Tinned for enhanced resistance against corrosion in marine environments.
• Pure Copper Conductivity: Made from pure copper to ensure maximum current flow and efficient electrical performance.
• Robust Construction: Features a brazed seam for maximum strength and durability.

Technical Specifications

Type	Ring Terminals
Gauge Size	12-10 AWG
Screw Size	5/16"
Package Quantity	100-Pack
Heat Shrink	Yes
Shrink Temperature	257° F / 125° C
Operating Temperature Range	40° C to 110° C
Box Dimensions	2"H x 3"W x 8"L
Weight	0.55 lbs
UPC	091887316186

Safety Warning

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (DEHP) which is known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, visit P65Warnings.ca.gov.

Additional Resources

• Quick Guide (PDF)
• Brochure (PDF)
