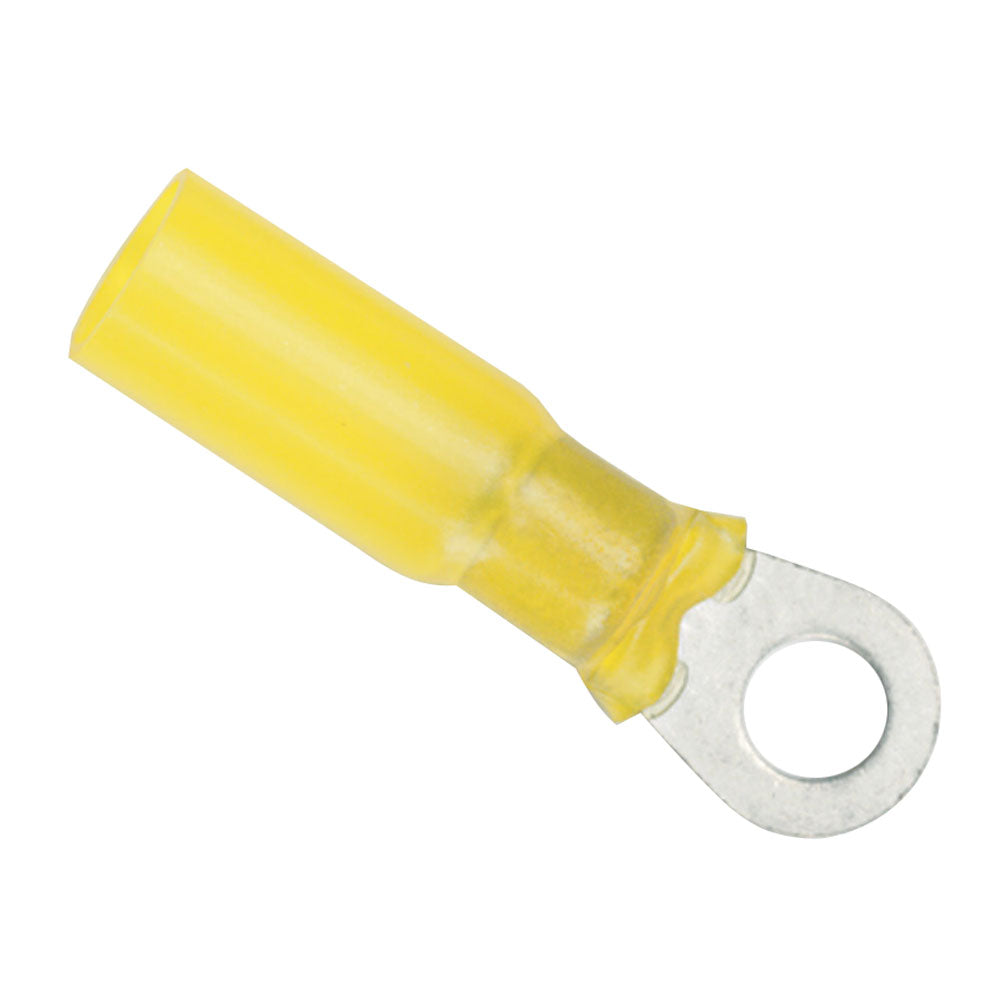

Ancor 12-10 Gauge - 3/8" Heat Shrink Ring Terminal - 100-Pack

Upgrade your marine electrical connections with our high-performance 12-10 Gauge - 3/8" Heat Shrink Ring Terminals. Specifically engineered for the demanding conditions of marine and boating environments, these ring terminals provide reliable, durable, and corrosion-resistant connections to ensure the safety and efficiency of your vessel’s electrical system.

Key Features

• Superior Tubing Material: Crafted from cross-linked polyolefin tubing, these terminals offer enhanced strength compared to PVC tubing and resist burning, ensuring long-lasting performance in harsh conditions.
• Advanced Adhesive Lining: Equipped with a heat-activated adhesive lining that creates an impervious seal against salt water, oil, acids, and sunlight. This feature also provides exceptional strain relief, protecting connections from wear and tear.
• Premium Nylon Insulator: Features a marine-grade nylon insulator renowned for its resistance to sunlight, water, oil, chemicals, vibration, and cut-through damage, preferred by marine experts for reliable performance.
• Certified Safety: UL Listed and CSA Recognized, ensuring compliance with stringent safety standards for marine applications.
• High Shrink Ratio: Shrinks to one-third of its original size at 257° F/125° C, providing a tight and secure fit for your connections.
• Wide Operating Range: Operates efficiently between 40° C to 110° C, suitable for various marine environments and temperature conditions.
• Integrated Adhesive: Ancor heat shrink connectors come with heat-activated adhesive built into the sleeve, forming a watertight seal that offers ultimate vibration and strain relief.
• Corrosion Resistance: Tinned pure copper construction prevents corrosion, ensuring maximum current flow and longevity of your electrical connections.
• Robust Construction: Features a brazed seam for added strength, guaranteeing durable and reliable performance in marine settings.

Specifications

Gauge	12-10 AWG
Type	Ring Terminals
Package Quantity	100-Pack
Heat Shrink	Yes
Post Size	3/8"
Box Dimensions	2"H x 3"W x 8"L
Weight	0.5 lbs
UPC	091887316247

Safety Information

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, visit P65Warnings.ca.gov.

Additional Resources

For detailed installation instructions and usage guidelines, please refer to our Quick Guide (PDF).
