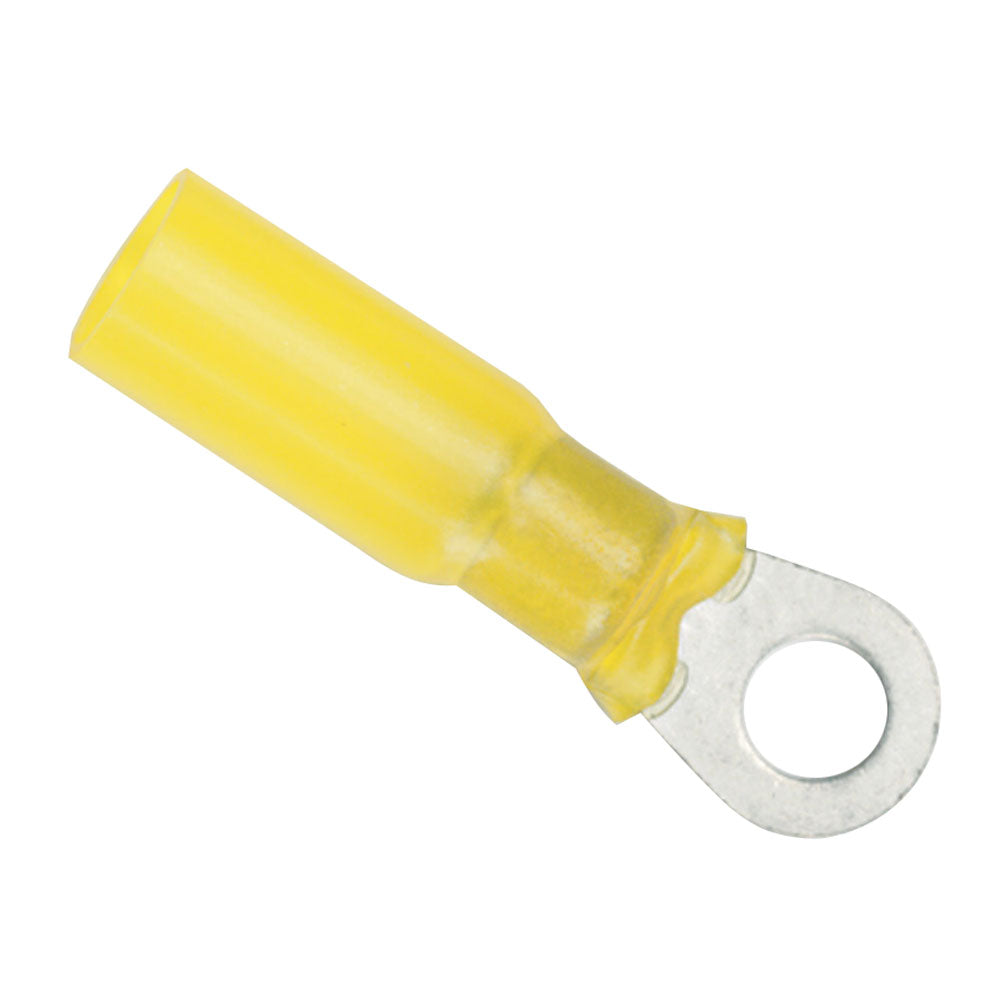

Ancor 12-10 Gauge - #10 Heat Shrink Ring Terminal - 100-Pack

Ensure reliable and secure electrical connections on your vessel with our 12-10 Gauge #10 Heat Shrink Ring Terminals. Specifically engineered for marine and boating applications, these high-quality ring terminals deliver exceptional durability and corrosion resistance, making them ideal for the harsh and demanding conditions of marine environments.

Product Features

• Superior Tubing: Cross-linked polyolefin tubing offers enhanced strength compared to PVC, providing better protection without the risk of burning.
• Advanced Seal: Heat-activated adhesive lining creates an impervious seal against saltwater, oil, acids, and sunlight, while also offering strain relief.
• Marine-Grade Insulation: Nylon insulator resists sunlight, water, oil, chemicals, vibration, and cut-through damage, preferred by marine professionals.
• Certified Safety: UL Listed and CSA Recognized for meeting strict safety standards.
• High Shrink Ratio: Shrinks to one-third of its original size, ensuring a tight and secure fit.
• Heat Shrink Specifications: Shrink temperature of 257° F / 125° C and operating temperature range from 40° C to 110° C.
• Reliable Connection: ANCOR heat shrink connectors feature built-in adhesive for a water-tight seal and superior vibration and strain relief.
• Corrosion Resistance: Terminals are tinned to prevent corrosion in marine environments.
• Enhanced Conductivity: Made with pure copper for maximum current flow.
• Durable Construction: Brazed seam ensures maximum strength and longevity.

Specifications

Gauge	12-10 AWG
Heat Shrink	Yes
Type	Ring Terminals
Post Size	#10
Package Quantity	100-Pack
Box Dimensions	2"H x 3"W x 8"L
Weight	0.4 lbs
UPC	091887316124

Safety Information

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Additional Resources

Download the Quick Guide (PDF)
