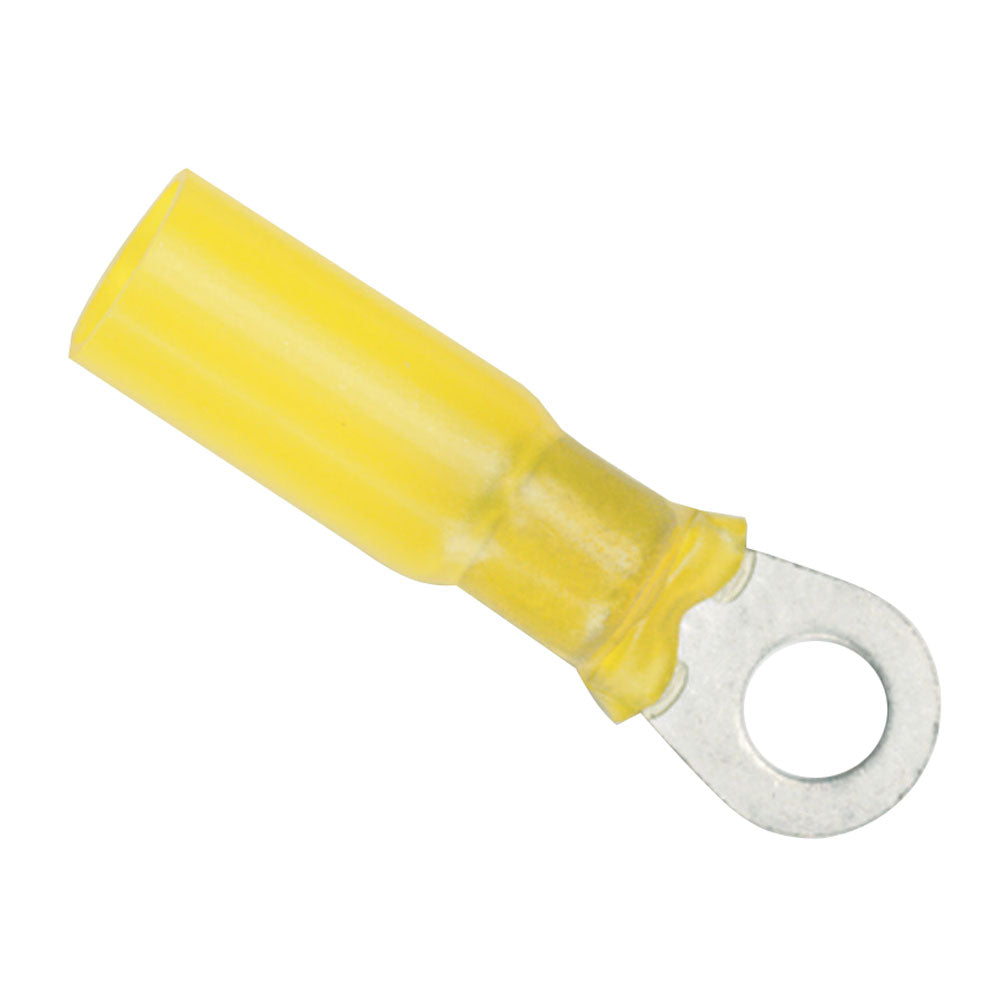

Ancor 12-10 Gauge - 1/4" Heat Shrink Ring Terminal - 3-Pack

Upgrade your marine electrical systems with our premium 1/4" Heat Shrink Ring Terminals. Specifically engineered for the demanding conditions of marine and boating environments, these terminals ensure secure and long-lasting connections. Whether you're installing or repairing your vessel's wiring, these ring terminals provide the reliability and protection needed to keep your electrical systems running smoothly.

Key Features

• Durable Tubing: Crafted from cross-linked polyolefin, offering superior strength and flame resistance compared to standard PVC tubing.
• Heat-Activated Seal: Integrated adhesive lining creates an impermeable barrier against salt water, oil, acids, and UV exposure, while providing effective strain relief.
• Marine-Grade Insulation: Equipped with a nylon insulator, renowned for its resistance to sunlight, water, oil, chemicals, vibrations, and mechanical damage.
• Certified Quality: UL Listed and CSA Recognized, ensuring adherence to the highest safety and quality standards.
• High Shrink Ratio: Shrinks to one-third of its original size, providing a compact and secure fit.
• Temperature Resistant: Shrinks at 257°F (125°C) and operates efficiently within a temperature range of 40°C to 110°C.
• Enhanced Protection: Features heat-shrink connectors with built-in adhesive for a watertight seal and superior vibration and strain relief.
• Corrosion Resistant: Tinned for excellent resistance against corrosion, ideal for harsh marine environments.
• Optimal Conductivity: Made from pure copper to ensure maximum current flow and electrical performance.
• Robust Construction: Brazed seam construction provides exceptional strength and durability under stress.

Specifications

Gauge	12-10 AWG
Type	Ring Terminals
Post Size	1/4"
Package Quantity	3-Pack
Heat Shrink	Yes
Box Dimensions	1"H x 1"W x 1"L
Weight	0.1 lbs
UPC	091887316254

Safety Information

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, visit P65Warnings.ca.gov.

Additional Resources

Download the Quick Guide (PDF) for detailed installation instructions and best practices.
