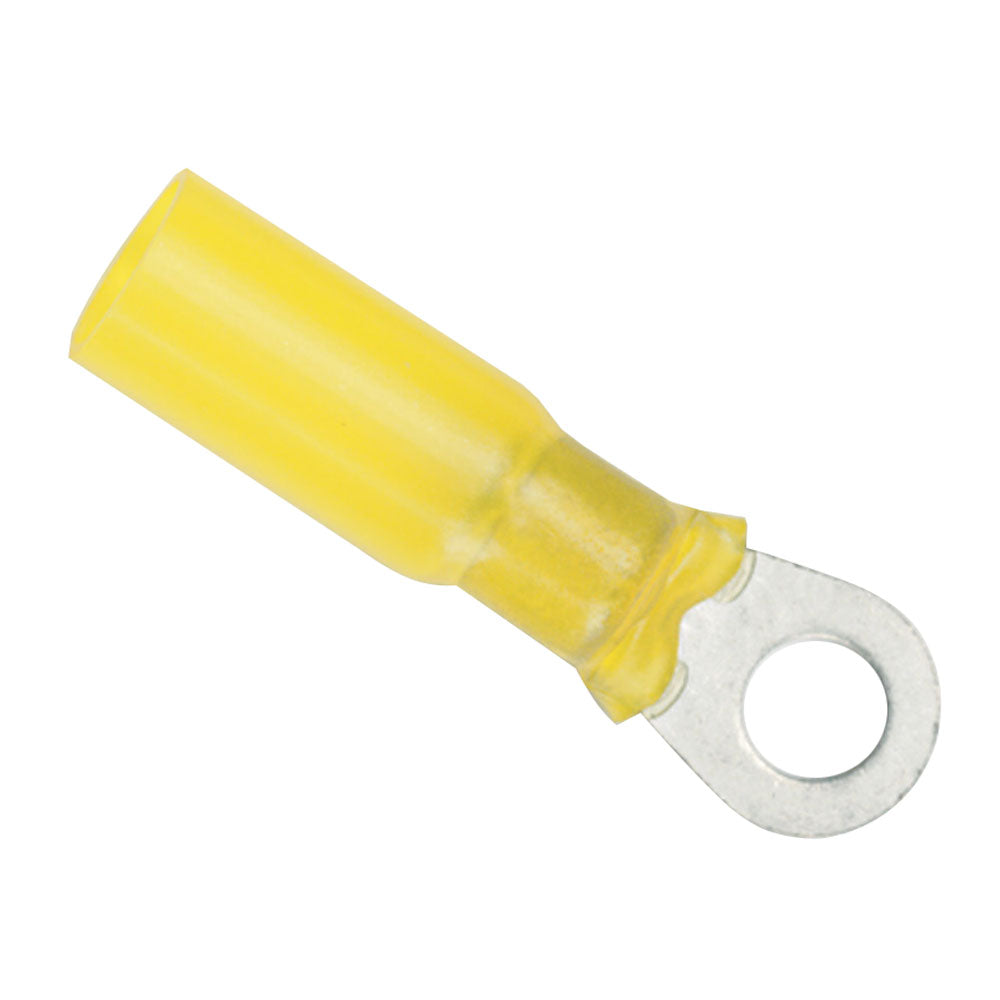

Ancor 12-10 Gauge - 1/4" Heat Shrink Ring Terminal - 25-Pack

Ensure reliable and secure electrical connections on your boat with our 12-10 Gauge, 1/4" Heat Shrink Ring Terminals. Specifically designed for marine environments, these ring terminals provide superior protection against harsh conditions, ensuring your electrical systems perform optimally even in the most demanding settings.

Product Features

• Durable Tubing: Crafted with cross-linked polyolefin tubing, these terminals are significantly stronger than PVC alternatives and offer enhanced fire resistance.
• Advanced Sealing: The heat-activated adhesive lining ensures an impervious seal against saltwater, oil, acids, and sunlight, while providing effective strain relief.
• Marine-Grade Insulation: Features a nylon insulator preferred by experts for its excellent resistance to sunlight, water, oil, chemicals, vibration, and cut-through damage.
• Certified Safety: UL Listed and CSA Recognized for meeting stringent safety and quality standards.
• Superior Shrink Ratio: Shrinks to one-third of its original size, offering a compact and secure fit.
• High Temperature Tolerance: Shrinks at 257° F (125° C) and operates effectively within a temperature range of 40° C to 110° C.
• Heat Shrink Connectors: Integrated heat-activated adhesive within the sleeve provides a watertight seal and ultimate vibration and strain relief.
• Corrosion Resistance: Tinned for enhanced resistance against corrosion, ensuring longevity in marine environments.
• Maximum Conductivity: Made with pure copper for optimal current flow.
• Enhanced Strength: Features a brazed seam for maximum durability and strength.

Specifications

Gauge	12-10 AWG
Post Size	1/4"
Package Quantity	25
Heat Shrink	Yes
Type	Ring Terminals
Box Dimensions	1"H x 4"W x 4"L
Weight	0.2 lbs
UPC	091887311075

Safety Information

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, visit P65Warnings.ca.gov.

Additional Resources

• Quick Guide (PDF)
• Brochure (PDF)
