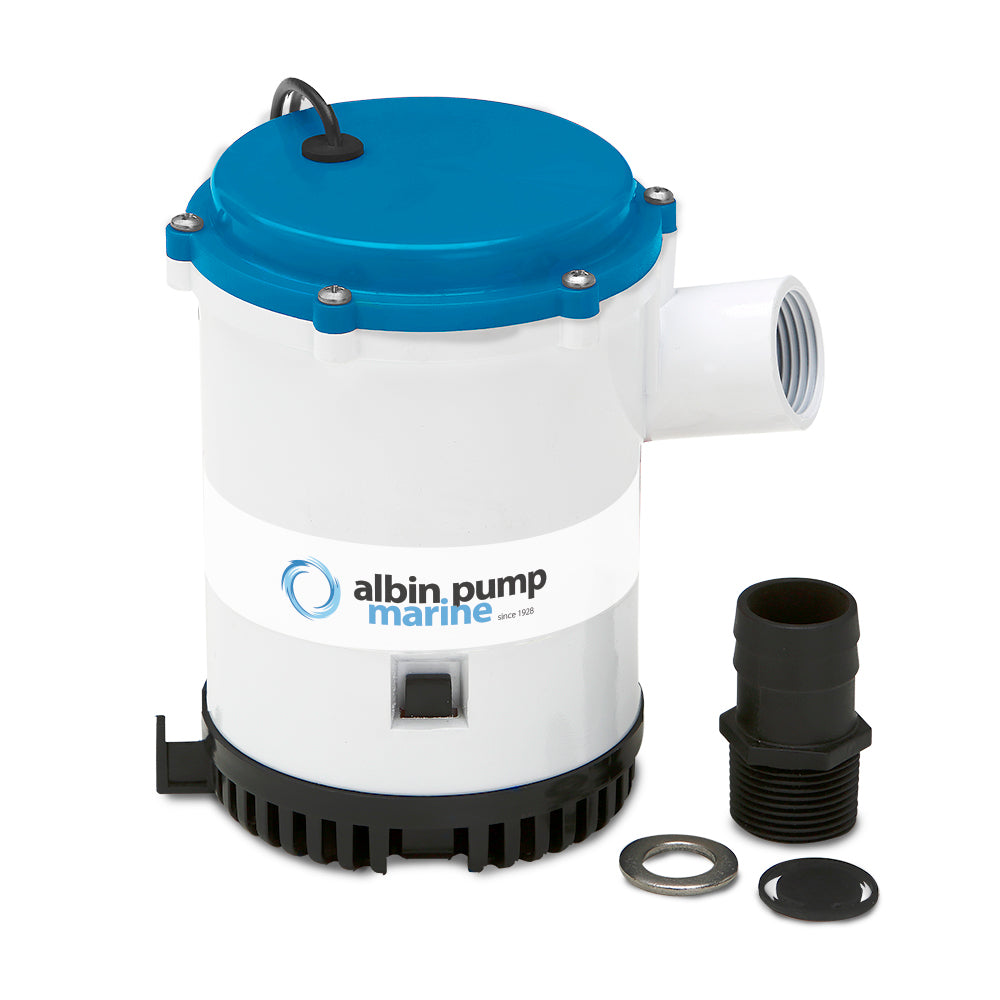

Albin Group Bilge Pump Heavy Duty 2250 GPH - 24V

Ensure the safety and efficiency of your vessel with our Heavy Duty 24V Bilge Pump, delivering an impressive 2250 GPH. Designed for both recreational and commercial boats exceeding 36 feet, this submersible pump offers reliable performance to keep your boat dry and seaworthy.

Key Features

• Robust submersible design suitable for heavy-duty marine applications
• High flow rate of 2250 GPH (140 L/min) at 1m head, ensuring rapid water removal
• Alternative flow rate of 1900 GPH (120 L/min) for different operational needs
• Durable stainless steel shaft for increased longevity
• Equipped with double ball bearings and a mechanical seal for enhanced reliability
• Tough thermoplastic ABS housing withstands harsh marine environments
• Long-life motor design reduces maintenance and replacement frequency
• Universal base plate featuring a strainer and pin for secure installation
• Compatible with interchangeable parts from Rule 2000 and Johnson Pump models
• Includes check valve to prevent backflow and ensure smooth operation
• Available with 32mm (1.25") and 38mm (1.5") outlet ports for versatile plumbing options
• Option to attach a level switch for automatic operation, enhancing convenience

Technical Specifications

Parameter	Details
Type	Electric Bilge Pump
Flow Rate	2250 GPH (37 GPM) at 1m head
Alternative Flow Rate	1900 GPH (120 L/min)
Voltage	24V
Outlet Size	1-1/4" or 1-1/2"
Dimensions	150/6L x 170/6.7H x 130/5W mm / in
Weight	0.9 kg / 1 lb (Box: 4.5 lbs)
Fuse	4.5A
UPC	7340176600134

Certifications

This bilge pump is CE marked in compliance with 94/25/ECC and ISO8846 for small craft. It also meets Electromagnetic Compatibility standards under 89/336/EEC and EN51014 1993 for radio disturbance, ensuring reliable and compliant performance in marine settings.

Compatibility and Interchangeability

• Compatible with Rule 2000 bilge pump models
• Interchangeable with Johnson Pump models 22084/32-2200-02
• Suitable for boats over 12 meters (36 feet) in length

Installation and Operation

The bilge pump features a universal base plate with a built-in strainer and pin for easy attachment. A level switch can be installed using the provided "T-slot" for automatic pump operation, ensuring your boat remains dry without manual intervention.
