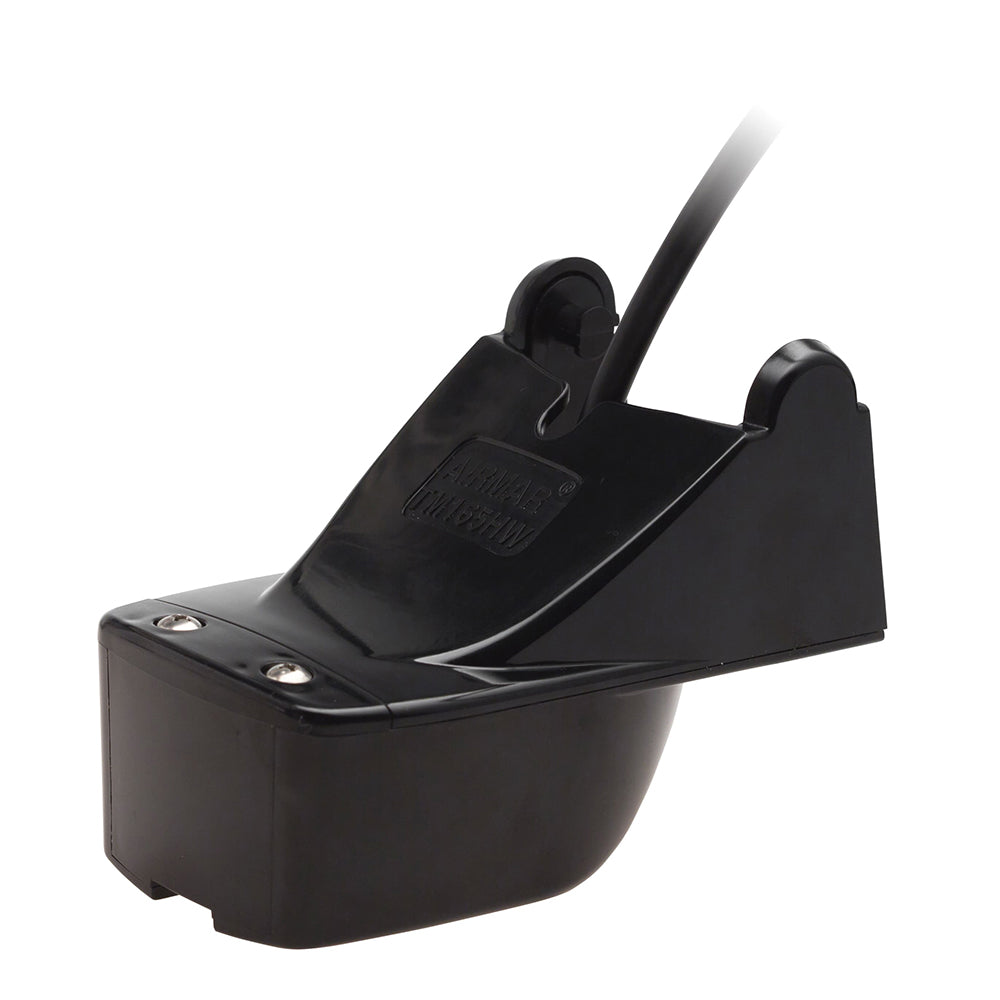

Airmar TM165HW Chirp High Wide 600W Transom Mount Transducer - Requires Adapter Cable

The TM165HW Chirp High Wide 600W Transom Mount Transducer is an exceptional upgrade for anglers seeking enhanced sonar performance. Designed for easy installation on fishing boats up to 25 feet, this transducer offers superior detail and expansive coverage, ensuring you never miss a beat beneath the waves.

Unmatched Performance

Experience crystal-clear, noise-free images with the TM165HW. Its High Wide Chirp technology provides extensive coverage from top to bottom, delivering stronger and well-defined fish targets. Whether you're navigating shallow waters or deep dives, this transducer ensures optimal performance and reliable detection.

Key Features

• 600W power with a maximum depth of 152 meters (500 feet)
• High Frequency: 150 kHz to 250 kHz for superior shallow water performance, bottom detail, and fish target separation
• Super Wide 30° average beamwidth for 3x the coverage compared to standard transducers
• Low-profile, high-performance design for excellent resolution at speed
• Depth and fast-response water-temperature sensor
• Exclusive Xducer ID® technology ensures seamless integration
• Requires Mix and Match adapter cable for compatibility

Compatibility

The TM165HW is compatible with a wide range of sonar systems, including:

Brand	Compatible Models
Lowrance	All models except Hook series
Humminbird	SM300; Helix and Solix can be set manually
Garmin	GPSMAP 7600, 8600, 7X2/9X2/10x2/12x2, GSD26
Raymarine	All models
Simrad	All models

Technical Specifications

Specification	Details
Temperature Sensor	Yes
Speed Sensor Included	No
Number of Pins	12
Mounting Style	Transom
Imaging	Standard
Chirp Technology	High Wide
Cable Length	9 meters (29.5 feet)
Box Dimensions	4″H x 8″W x 11″L
Weight	2.55 lbs
UPC	801769002775

Installation and Compatibility

The TM165HW operates as an AIRMAR Mix and Match transducer, featuring a common base transducer with a short (9m) cable and an interchangeable 1m brand-specific adapter cable. This design ensures easy integration with your existing sonar systems, providing flexibility and convenience.

Additional Information

Please note: This product cannot be returned to the original point of purchase. For any issues or concerns, please contact the manufacturer directly.

Download the Brochure: Brochure (PDF)
