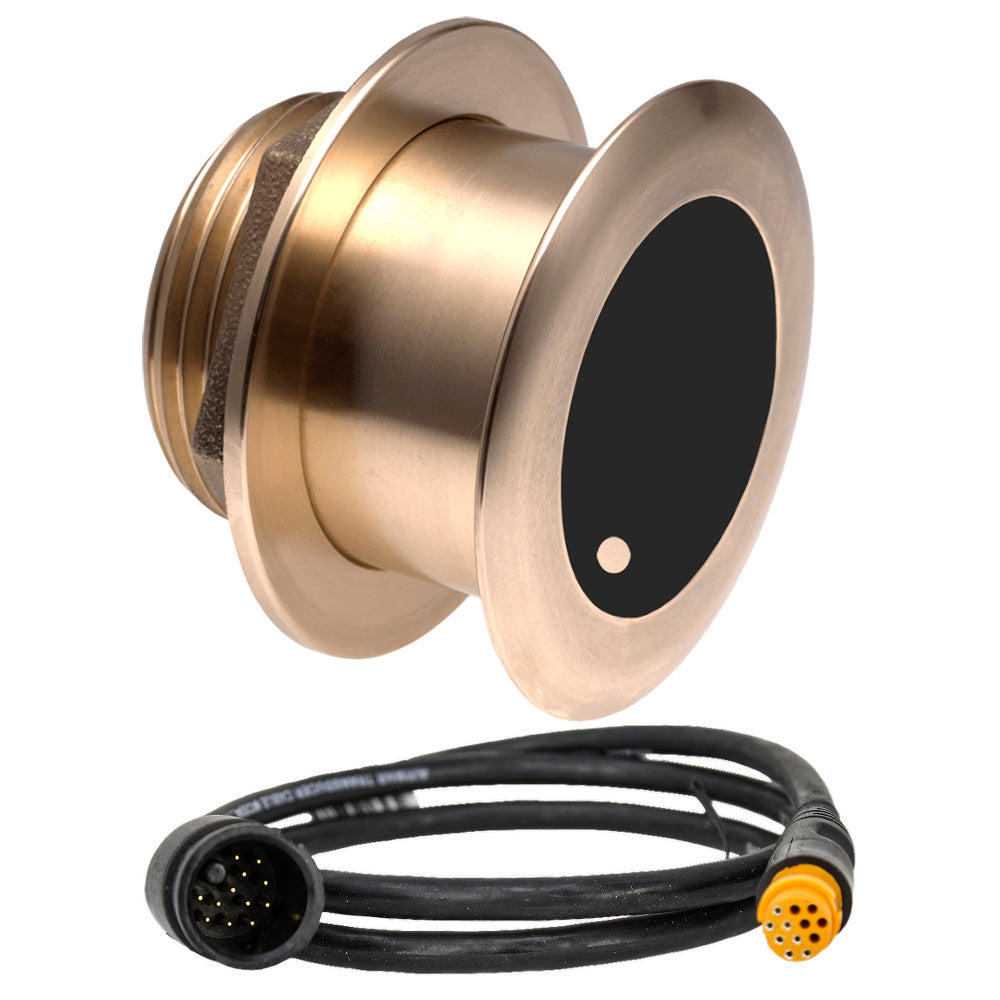

Airmar B175MW Med Ultra Wide 1kW, 20 Chirp Thru-Hull Transducer f/12-Pin Garmin

The B175MW Med Ultra Wide 1kW, 20° Chirp Thru-Hull Transducer is engineered for anglers seeking exceptional performance and reliability on the water. Designed by Airmar Technology, this advanced transducer delivers superior mid-depth performance, ensuring precise fish-target separation and comprehensive coverage beneath your vessel.

Product Overview

Airmar's Chirp-ready B175MW Medium Ultra-Wide Tilted Element™ Thru-Hull transducer redefines fishing technology with its innovative design and high-performance capabilities. Operating within a medium frequency range of 60-100 kHz, the B175MW offers an expansive beamwidth of 57° to 73° port-starboard and an average fore-aft angle of 16°, providing maximum coverage and clarity in the water column. This makes it an ideal choice for anglers targeting pelagic species and deep-water fishing enthusiasts.

Key Features

• Tilted Element Design: Fixed at a 20° angle, the Tilted Element™ ensures the ceramic element is vertically oriented, maximizing echo returns and compensating for hull deadrise.
• High Power Output: With a 1 kW power rating, the B175MW delivers strong signal strength and depth tracking capabilities down to 400 meters (1,300 feet).
• Ultra-Wide Beamwidth: Provides a broad coverage area with 57° to 73° beamwidth port/starboard and a 16° average fore/aft, enhancing target detection and accuracy.
• Durable Construction: Crafted from bronze, the transducer housing is suitable for various hull types including stepped, planing, or displacement hulls.
• Garmin Compatibility: Equipped with a 12-pin connector, ensuring seamless integration with Garmin FishFinders.
• Temperature Sensor: Features a fast-response water-temperature sensor for real-time environmental data.
• Low-Profile Installation: The thru-hull design allows for streamlined installation, maintaining good resolution even at higher speeds.
• Exclusive Xducer ID® Technology: Enhances transducer identification and functionality within Garmin systems.

Technical Specifications

Specification	Details
Brand	Airmar Technology
Acoustic Window	Urethane
Cable Length	9 m (30'), 10 m (33')
Common Use	Fishing
Connector	Garmin 12-Pin
Country of Origin	USA
Display Connector	12G
Functions	Depth, Temperature
Hole Size	95 mm (3-3/4")
Hull Material	Fiberglass or Wood
Material	Bronze
Max Deadrise Angle	24°
Max Depth	400 m (1300')
Max Vessel LOA	Up to 11 m (36')
Frequency	60-100 kHz
Beamwidth	57° to 73° (Port/Starboard) x 16° average (Fore/Aft)
Mounting Style	Tilted Element Thru-Hull
Power Rating	1 kW
Frequency Type	Single
Tilt Angle	20°
Tilted Element	Yes
Water Temperature Range	-10° to 40°C (14° to 104°F)
Weight	2.7 kg (6 lbs.)

Why Choose the B175MW Chirp Thru-Hull Transducer?

The B175MW stands out in the marine electronics market due to its unparalleled combination of frequency range, beamwidth, and durable construction. Whether you're navigating shallow waters or deep-sea fishing, this transducer provides the versatility and performance needed to enhance your fishing experience.

When paired with Airmar’s B275LHW or other compatible models, you gain access to a comprehensive set of frequencies, enabling you to explore targets from deep to shallow waters with ease.

Installation and Compatibility

Designed for ease of installation, the B175MW features a low-profile thru-hull housing that fits seamlessly into fiberglass or wooden hulls with a 95 mm (3-3/4") hole size. The fixed 20° tilt ensures optimal performance by aligning the transducer vertically, regardless of hull deadrise angles up to 24°. Compatible with Garmin FishFinders via a 12-pin connector, integration into your existing marine setup is straightforward.
