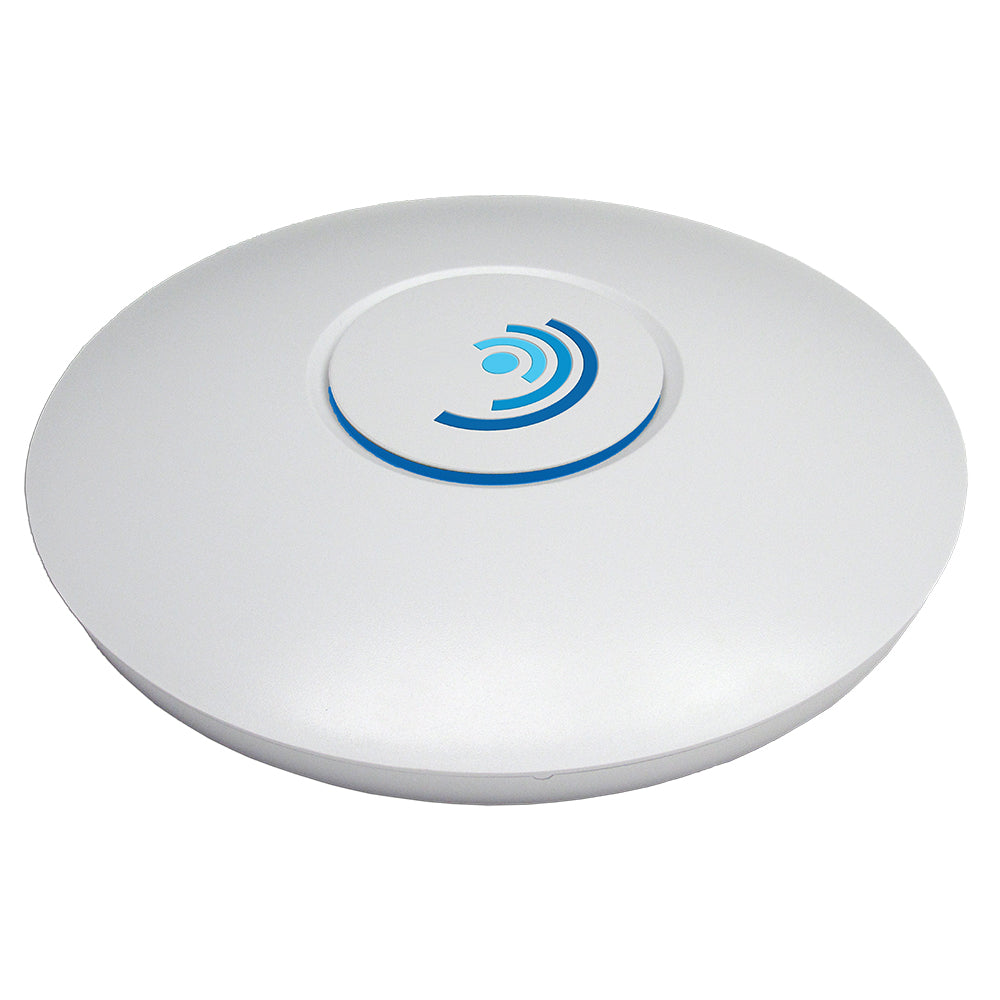

Aigean MAP7 Marine Wireless Access Point

Enhance your vessel's connectivity with the MAP7 Dual Band Marine Access Point by Aigean. Designed specifically for marine environments, this high-performance wireless access point ensures seamless internet distribution across your boat, allowing everyone onboard to stay connected effortlessly.

Key Features

• Dual-Band Performance: Operates on both 2.4 GHz and 5 GHz frequencies (802.11abgn) to provide robust and reliable wireless coverage throughout your vessel.
• Scalable Connectivity: Perfect for smaller boats with a single MAP7 unit, while larger vessels (over 40' LOA) can benefit from multiple access points for comprehensive coverage.
• Easy Integration: Connects effortlessly to your existing marine network, expanding your wireless capabilities without complex installations.
• Remote Management: When paired with Aigean Networks Wi-Fi Clients or Routers, manage all connected access points through centralized interfaces for streamlined control.
• Durable Construction: Built to withstand harsh marine environments with an IP60 rated enclosure, ensuring reliable performance on the water.

Technical Specifications

Processor	Atheros MIPS 74Kc, 550MHz
Memory	128MB SDRAM, 16MB Flash
Networking Interface	2 x 10/100/1000 BASE-TX Gigabit Ethernet (Cat 5, RJ-45)
Wireless Standards	802.11a/b/g/n dual-band
Maximum Speed	Up to 5 GHz
Box Dimensions	3"H x 9"W x 9"L
Weight	1.8 lbs
UPC	860006788735

Physical, Electrical & Environmental Specifications

RF Connector	None - Equipped with Internal Antennas
Enclosure Size	11.9" x 9.3" x 1.5" (300mm x 266mm x 36.7mm)
Weight	0.64 lbs (0.29 kg) without Mounting Kits, 0.95 lbs (0.43 kg) with Mounting Kits
Enclosure Type	Plastic Saucer-Style Enclosure
Power Method	Passive Power over Ethernet (48V), 802.3af Supported
Operating Temperature	-10°C to 70°C (14°F to 158°F)
Operating Humidity	5% to 80% Noncondensing
Shock and Vibration	Compliant with ETSI300-019-1.4
Environmental Resistance	IP60 (NEMA 1)

What's Included

• MAP7 Dual Band Marine Access Point
• Mounting Bracket
• 110-220V AC PoE Injector
• Installation Hardware

Warranty

Backed by a 2-Year Limited Warranty, ensuring peace of mind and reliable performance on every voyage.
