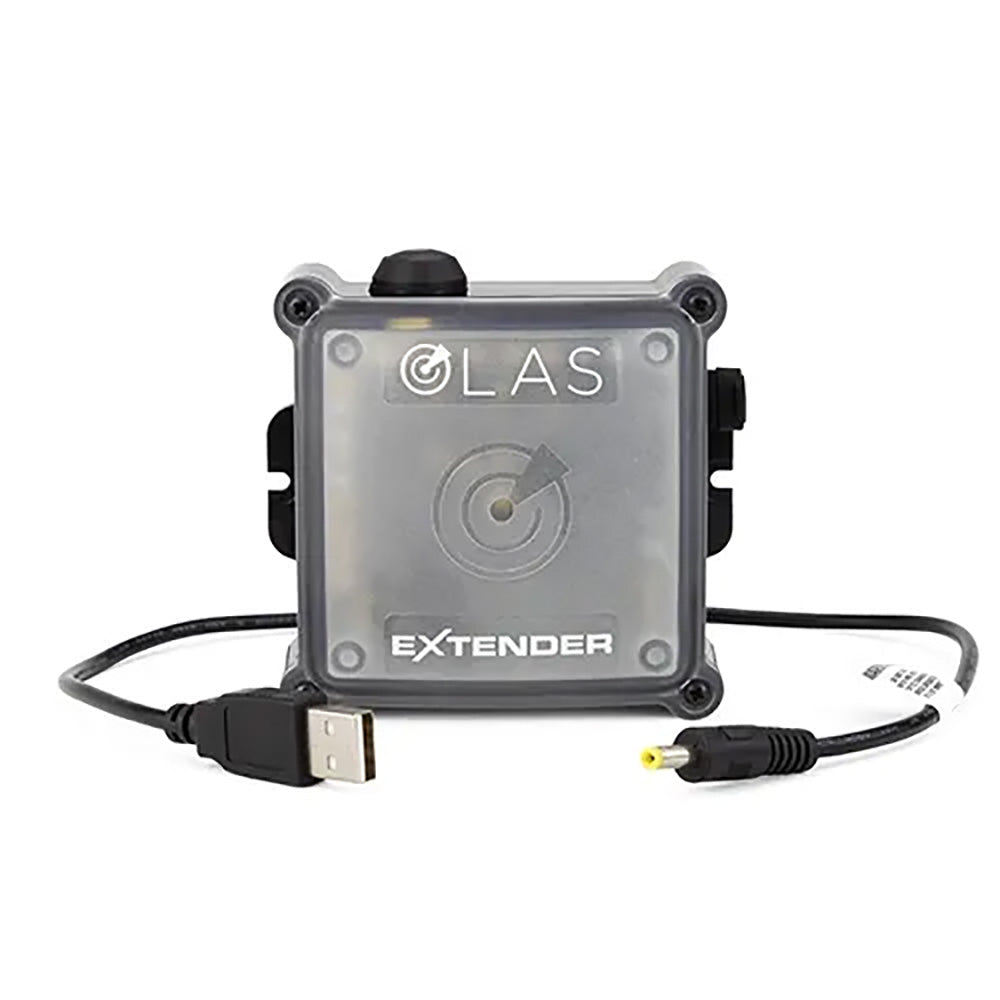

ACR OLAS Exposure Series Extender

The OLAS Exposure Series Extender enhances the performance of your OLAS MOB Alarm systems by extending their wireless range, ensuring comprehensive coverage for your vessel. Designed for marine enthusiasts, this compact and durable repeater provides reliable connectivity, whether you're navigating calm waters or challenging conditions.

Key Features

• Extended Coverage: Boost the range of your OLAS N2K, Guardian, or Core MOB Alarm systems from 50ft up to 100ft using two Extenders, ensuring your entire vessel is monitored.
• Portable and Low Power: Equipped with an internal rechargeable battery, the Extender operates for up to 80 hours on a single charge. Alternatively, it can be powered continuously via a 5V USB connection.
• Waterproof Design: With an IP67 rating, the Extender is fully waterproof, making it ideal for harsh marine environments.
• Easy Setup: Quick and hassle-free installation with no hard wiring required. Simply pair the Extender with your OLAS system and position it for optimal coverage.
• Durable Construction: Built with high-quality ABS material, the Extender withstands the rigors of marine use.

Advantages of the OLAS Exposure Series Extender

Simple Pairing Process

• Activate pairing mode on your OLAS N2K, Guardian, or Core system.
• Press the button on the Extender once to turn it on and automatically connect to the base system.
• The Extender remains paired, ensuring seamless operation without repeated setups.

Optimal Placement with LED Indicators

• Utilize the LED indicators on the switch to find the best position for the Extender.
• Move the Extender around the vessel until the LED turns solid red, indicating a strong connection.
• Secure the Extender in the optimal location for maximum coverage.

Flexible Power Options

• Use the internal rechargeable battery for portable operation up to 80 hours.
• For a permanent setup, connect the Extender to a 5V power supply using the included USB cable.

Technical Specifications

Specification	Details
Dimensions	3.6” (H) x 3.5” (L) x 1.5” (W) / 92 mm (H) x 90 mm (L) x 38 mm (W)
Weight	4.06 ounces (115 g)
Color	Black and Clear
Operation	Switch OLAS N2K, Guardian, or Core into pairing mode and press the Extender button once to connect
Power	5V / 13-17mA
Recharge Time	3 hours
Approvals	FCC, RED, CE, RoHS 2.0
Range	Extends system range to 100ft (requires 2 Extenders)
Buoyant	No
Waterproof	Yes (IP67)
Housing Material	ABS
Warranty	2 Years

Why Choose the OLAS Exposure Series Extender?

Enhance the safety and reliability of your marine MOB alarm system with the OLAS Exposure Series Extender. Whether you're upgrading an existing setup or expanding coverage for a larger vessel, this Extender offers the perfect balance of performance, durability, and ease of use. Protect your vessel and ensure peace of mind with OLAS.

Note: This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.
